Handley Page Dart Herald

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Handley_Page_Herald

HPR.7 Dart Herald

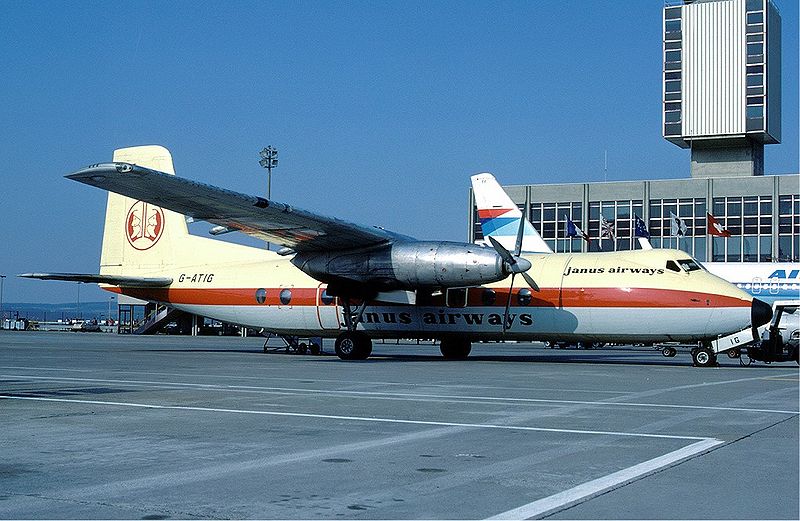

Handley Page HPR-7 Herald 214 of Janus Airways at Basle Airport, 15 April 1984
Role Airliner
Manufacturer Handley Page (Reading)
First flight 25 August 1955
Produced 1959-1968
Number built 50

The Handley Page Dart Herald was a 1950s British turboprop passenger aircraft.

Design and development

In the mid 1950s, the Handley Page Aircraft Company developed a new fast short-range regional airliner, intended to replace the venerable Douglas DC-3, particularly in third-world countries. The design, originally known as the HPR-3 Herald, emanated from the drawing office at Handley Page (Reading) Limited - the former Miles Aircraft factory site, which developed an earlier airliner design, the Miles Marathon. The Herald was an extensive development of the original concept of the Marathon, notably its high mounted wing. The HP Reading division succeeded in producing a modern design, which had excellent flight and performance characteristics. However, the company made a serious misjudgement, and the Herald missed its chance, like some other classic British aircraft of the time.

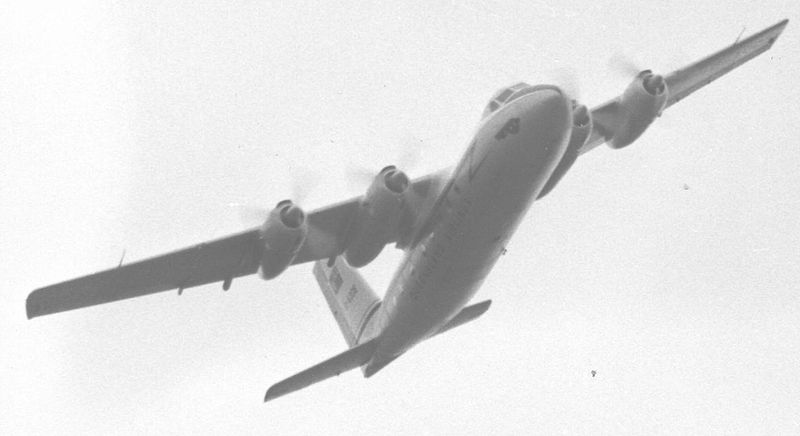

The HPR.3 Herald prototype with four Alvis Leonides engines, demonstrating at Farnborough in September 1955
The HPR.3 Herald prototype with four Alvis Leonides engines, demonstrating at Farnborough in September 1955

As with the Marathon, the HPR-3 Herald was originally configured with four piston engines. In the case of the Herald they were 870 hp (650 kW) Alvis Leonides Major piston engines, driving three-bladed propellers. By now, however, the Rolls-Royce Dart turboprop engine had shown proven success in the Vickers Viscount. HP failed to take early account of this in the Herald design phase; particularly the market desire for the new turboprops. This misjudgement and the ensuing delay was to prove a costly mistake for the company.

However, the Herald was advanced in many ways for the time. Its pressurised cabin up to 30,000 ft (9,140 m), could seat up to 47 passengers in the series 100 (up from 44 originally) and could easily exceed 300 mph (480 km/h) in level flight. Initial climb rate was over 1,800 ft/min. The first "Herald" prototype, G-AODE, first flew on 25 August 1955 and was demonstrated at the Farnborough Air Show two weeks later. Although Queensland Airlines, Australian National Airways, and Lloyd Aereo Colombiano had initially placed 29 orders, these were later cancelled with only the first prototype completed. As a result Handley Page belatedly realised it had to make a major change to the engine configuration, if the Herald was to have any chance in the market.

There had already been a very substantial investment in the Herald project, such that the Management held a meeting to discuss continuation. Handley Page decided to press ahead with the Herald project, in an effort to recover the investment; announcing a new uprated version, reworking the wing to use Rolls-Royce Dart turboprops fitted with 12.5 ft (3.81 m) variable pitch four-blade Dowty Rotol props, and lengthening the fuselage by 20 in (51 cm). The first prototype series 100 first flew in 1958. Now designated the HPR.7 Dart Herald, the new aircraft entered production in 1959. The first order was placed by BEA.

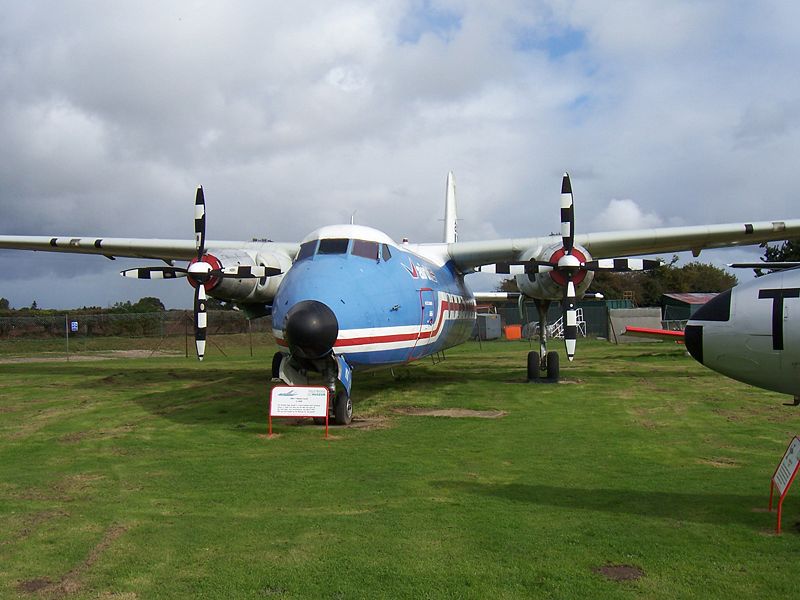

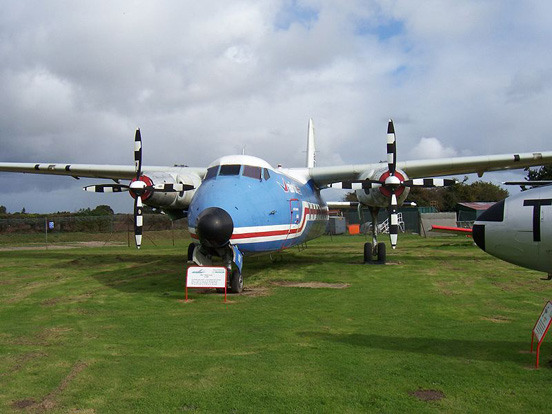

HPR.7 Herald G-ASKK preserved at the City of Norwich Aviation Museum
HPR.7 Herald G-ASKK preserved at the City of Norwich Aviation Museum

Operational history

The Herald attracted much early interest around the world because of its astonishing short field performance and excellent flight characteristics, but Handley Page failed to close many of the deals, as the F-27 and the HS.748 had become rival offerings, both of which were significantly cheaper. There has been some speculation about the origin of the F-27 design, which first flew earlier than the Herald in turboprop configuration. A key design feature of the Herald was the high mounted wing but notably with an upswept dihedral. In addition, the Herald's vertical fin is covered in miniature aerofoils, adding further to the Herald's excellent stability.

Pilots reported the Herald flew like a dream; very stable in the air, yet highly maneuverable even at slow speed. Ground handling was said to be the Herald's only vice due to an overlarge tail fin. Credit for the Herald's useful wing and aerofoil features was due to the company's wing design office, which had garnered an unrivalled reputation for advanced wing design, including the crescent wing of the Victor bomber. Handley Page invented the Slot, later referred to as the Handley Page Slot, without which most modern aircraft would not be nearly so easy to manage at slow speeds.

Despite the rework, that transformed the HPR.3 to the HPR.7 Herald, only four of the original 47 seat Series 100 HPR.7s were built. Believing a yet larger version was needed, HP turned to Series 200 production


Dart Herald Srs 202
Dart Herald Srs 202

, which featured a further 3 ft 4 in (1.07 m) stretch of the fuselage, seating up from 47 to 56 and corresponding increased weights. Series 200 production began in 1961. The first production model was delivered to Jersey Airlines in January 1962. However, by this point all sales momentum had been lost, and only 36 examples of this major production model were eventually built during the six years of production.

The Herald Series 400 was specially developed in 1964 as a "tactical transport" built for the Royal Malaysian Air Force, with a strengthened cabin floor. HP suspected that the Herald was still too small and so a 60-seater Series 700, powered by Dart 532s and having increased fuel and weights was designed.

A late attempt was made to revive sales when speculative production commenced on eight Series 700 airframes. The project was cancelled as several of the airframes were approaching completion. The partially completed airframes were scrapped. The 50th, and last, Herald (a series 200 for Israel's Arkia) was flown and delivered in August 1968, after which Herald production ceased and attention turned to the HP.137 Jetstream.

The Herald's last ever passenger flight was operated by British Air Ferries in 1987 doing subcharters for Ryanair on the Waterford-Luton route. A durable and reliable aircraft, capable of being heavily worked, many continued on as freighters, plying the night sky across Britain and the near continent, for several operators including Royal Mail, BAF, Channel Express, DHL, Elan, Securicor and others; transporting papers, milk, parcels, post, tomatoes, flowers, and other goods round the clock. Some aircraft were in a specially convertible configuration, flying passengers by day and goods all night, but by 1999 the only one remaining in service, was a series 400 [G-BEYF] with Channel Express; it was retired at the end of March that year.

Cancellation

It is widely thought that the misjudgements made during the Herald project, necessitating major design changes so late in the design cycle, was to prove the company's fatal mistake. Moreover, HP had been doggedly independent throughout its history. The UK Government favoured placing orders for military and civilian aircraft with the newly nationalised aircraft constructors, combined under the name British Aircraft Corporation (BAC). Sir Frederick Handley Page was very much against nationalisation. Even after his death in 1962, the company continued to plough on as an independent constructor. But this policy saw HP lose out to BAC in military and civilian orders by Government, with the notable exception of the HP Victor, which sold on its undoubted merit.

The demise of Handley Page was unfortunate. The company made a series of catastrophic errors, not least of which, was failing to judge the changing needs of the airlines that expressed early interest in the Herald. The company did not have the stomach to press ahead in a difficult economic climate effectively competing with a much larger company. Development of the Herald had proven to be an extremely expensive project. Despite much hope over the Jetstream 137, and possible new variants of the Herald, with eight speculative builds at various stages of completion, Management made the difficult but brave decision to wind the company up.

Handley Page went into voluntary liquidation on the close of its books on 31 March 1970. The profitable HP.137 Jetstream operation and drawing and design staff were the only useful parts of Handley Page left, but it was not enough for the company to survive as Handley Page. The Jetstream operation was sold and transferred to Scottish Aviation, later to become a subsidiary called Jetstream Aviation. This company was later acquired by and absorbed into British Aerospace. The Jetstream went on to be a successful commuter airliner.

A belated attempt to revive the Herald design as a pure jet-powered development was shown in model form at the Farnborough Airshow in 1962. The basic Herald components were incorporated along with a stretched fuselage, with two Rolls-Royce Spey turbo-fan engines slung in pods under the wings. Other modifications included a shorter wingspan and revised tailplane mounted midway up the vertical tail. No interest was evoked in the "Jet Herald" with the project being stillborn.

Variants

HPR-3 Herald
Prototype with four piston engines - seating capacity 44
HPR-7 Dart Herald
Series 100
Initial Dart turboprop production version. 4 built.
Series 200
Fuselage length increased from 71 ft 11 in to 75 ft 6 in and maximum accommodation rose from 47 to 56 seats. 36 built.
Series 300
Proposed version with modifications to meet United States Airworthiness requirements.
Series 400
Side-loading military transport derivative of the Series 200 incorporating a strengthened floor for carrying freight, 50 troops or 24 casualty stretchers and medical attendants. 8 built for the Royal Malaysian Air Force.
Series 500
Proposed more powerful version of the 400.
Series 600
Proposed version with 5 ft (1.5 m) increase in fuselage length and more powerful Dart turboprops. High-density accommodation for 64-68 passengers.
Series 700
Longer range version similar to the Series 600 but without fuselage lengthening. Ten ordered by VASP but production not initiated.

Operators

Civil operators

 Brazil
  • SADIA SA Transportes Aereos (Later renamed Transbrasil)
 Canada
 Colombia
  • La Urraca
 France
  • Europe Aero Service
  • Touraine Air Transport
 Germany
  • Bavaria Fluggesellschaft
 Guatemala
  • Aerovias
 Israel
  • Arkia
 Italy
 Jordan
 Philippines
  • Air Manila International
 Switzerland
  • Globe Air
 Taiwan
 United Kingdom
 Zaire
  • MMM Aero Service

Military Operators

 Jordan
 Malaysia

Accidents and incidents

On 10 August 1958, the prototype Dart Herald was due to appear at Farnborough air show but suffered an engine failure en route from Woodley. The fuel lines ruptured and a serious fire ensued. The engine bearers burned through and the aircraft was finally crash landed by the pilot, Squadron Leader H Hazelden in a field. The landing was accounted an astonishing feat of airmanship.

Survivors

  • Herald 100, G-APWA (s/n 149) Museum of Berkshire Aviation, Woodley
  • Herald 201, G-APWJ (s/n 158) Duxford Aviation Society, Duxford Aerodrome
  • Herald 211, G-ASKK (s/n 161) City of Norwich Aviation Museum, Norwich Airport
  • Herald 401, G-BEYF (s/n 175) Bournemouth Aviation Museum, Bournemouth Airport. This aircraft has now been scrapped due to closure of the museum. The cockpit section can be seen at Wycombe Air Park in Buckinghamshire
  • Herald 213, G-AVPN (s/n 176) Yorkshire Air Museum, Elvington
  • Herald 214, G-ASVO (s/n 185) Highland Aviation Museum, Inverness
  • Herald 209, G-CEXP (s/n 195) London Gatwick Airport, stored

Specifications (Dart Herald 200)

Data from Handley Page Aircraft since 1909

General characteristics

  • Crew: 2
  • Capacity: 56 passengers
  • Length: 75 ft 6 in (23.01 m)
  • Wingspan: 94 ft 9½ in (28.90 m)
  • Height: 24 ft 0 in (7.32 m)
  • Wing area: 886 ft² (82.3 m²)
  • Empty weight: 24,960 lb (11,345 kg)
  • Max takeoff weight: 43,000 lb (19,545 kg)
  • Powerplant:Rolls-Royce Dart Mk.527 turboprop, 1,910 hp (1,425 kW) each
