Fairchild Swearingen Metroliner

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Fairchild_Swearingen_Metroliner

Metroliner

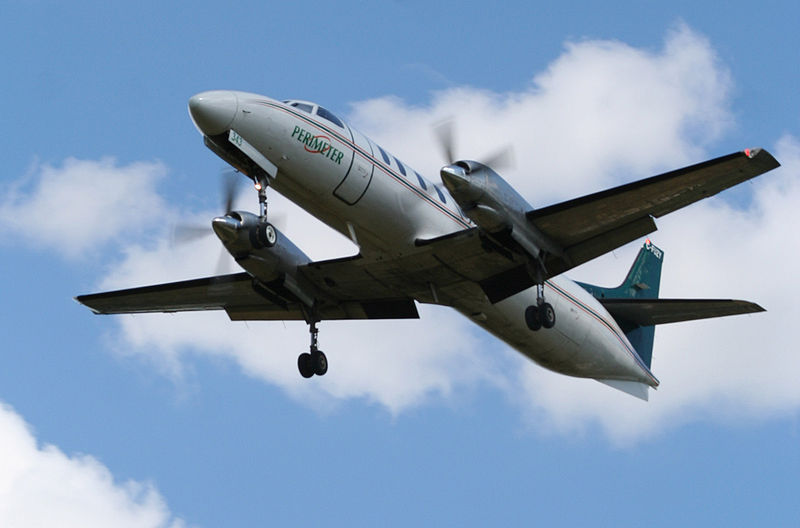

Perimeter Aviation C-FUZY SA226-TC Metro II over Winnipeg, Manitoba c. 2007
Role Regional airliner
Manufacturer Fairchild
First flight August 26, 1969
Introduced 1972
Status Currently in use
Primary users Ameriflight
Bearskin Airlines
Pel-Air
Perimeter Aviation
Produced 1968-2001
Number built 600+
Developed from Swearingen Merlin
Variants C-26 Metroliner

The Fairchild Swearingen Metroliner or the Fairchild Aerospace Metro is a 19-seat, pressurised, twin turboprop airliner first produced by Swearingen Aircraft and later by Fairchild at a plant in San Antonio, Texas.

Design and development

The Metroliner was an evolution of the Swearingen Merlin turboprop-powered business aircraft. Ed Swearingen, a Texas fixed-base operator (FBO), started the developments that led to the Metro through gradual modifications to the Beechcraft Twin Bonanza and Queen Air business aircraft, aircraft he dubbed Excalibur.

Then a new fuselage (but with a similar nose) and vertical fin were developed, married to salvaged and rebuilt (wet) Queen Air wings and horizontal tails, and Twin Bonanza landing gear; this became the SA26 Merlin, more-or-less a pressurized Excalibur. Through successive models (the SA26-T Merlin IIA and SA26-AT Merlin IIB) the engines were changed to Pratt & Whitney Canada PT6 and then Garrett TPE331 turboprops. These were marketed as business aircraft seating eight to ten passengers.

An all-new aircraft was built and called the SA226-T Merlin III with new nose, wings, landing gear, cruciform horizontal tail and inverted inlet Garrett engines. Ultimately a stretch of the Merlin III was designed, sized to seat 22 passengers and called the SA226-TC Metro. Because FAA regulations limited an airliner to no more than 19 seats if no flight attendant was to be carried, the aircraft was optimized for that number of passengers. The standard engines offered were two TPE331-3UW turboprops driving three-bladed propellers. A corporate version called the SA226-AT Merlin IVA was also marketed and initially sales of this version were roughly double that of the Metro.

Prototype construction of the Metro began in 1968 and first flight was on August 26, 1969. Swearingen Aircraft encountered financial difficulties at this stage, and late in 1971 Fairchild (which was marketing the Metro and building its wings and engine nacelles), bought 90% of Swearingen and the company was renamed Swearingen Aviation Corporation. It was at this point that the previously cash-strapped company was able to put the Metro into production.

In 1974, the original Metro models were replaced by the SA226-TC Metro II after about 20 Metros and about 30 Merlin IVAs had been built. Among the changes made were larger, squared-oval windows and optional provision for a small Rocket-Assisted Take Off (RATO) rocket in the tail cone, this being offered to improve takeoff performance out of "hot & high" airfields in the event of an engine failure.

The Metro and Metro II were limited to a maximum weight of 12,500 pounds (5,670 kg) in the USA and 5,700 kg in "metric" countries. When this restriction was lifted the Metro II was re-certified as the Metro IIA in 1980 with a maximum weight of 13,100 pounds (5,941 kg) and the Metro II's TPE331-3 engines replaced by -10 engines of increased power.


VH-EEO, a purpose-built SA227-AT Expediter freighter (without cabin windows) in service with Pel-Air c. 2007
VH-EEO, a purpose-built SA227-AT Expediter freighter (without cabin windows) in service with Pel-Air c. 2007

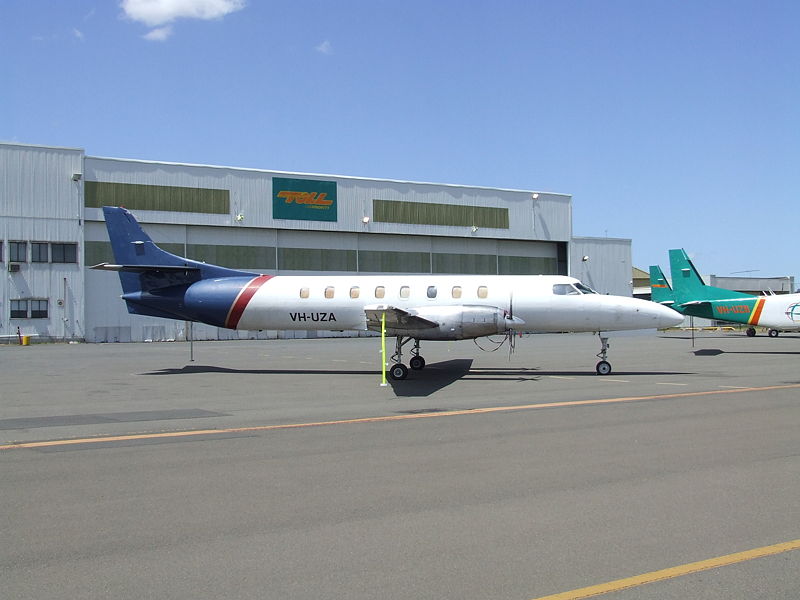

Jetcraft Aviation SA227-AT Merlin IVC freighter conversion VH-UZA in service, Australia c. 2007
Jetcraft Aviation SA227-AT Merlin IVC freighter conversion VH-UZA in service, Australia c. 2007

The SA227-AC Metro III was next, also initially certified in 1980 at up to 14,000 pounds (6,350 kg) this increasing to 14,500 pounds (6,577 kg) as engines and structures were upgraded. An option to go as high as 16,000 pounds (7,257 kg) was offered. Externally, improvements incorporated into the Metro III were a 10 ft (3.05 m) increase in wing span, four-bladed props, redesigned "quick-access" engine cowlings and numerous drag-reducing airframe modifications, including landing gear doors that close after the gear is extended.

Once again a corporate version was offered as the Merlin IVC (the model name was chosen to align with the contemporaneous short-fuselage Merlin IIIC). A version with strengthened floors and the high gross weight option was offered as a cargo aircraft known as the Expediter. Both the Expediter and the Merlin IVC were designated the SA227-AT. Finally, due to reliability problems with Garrett engines in the second half of the 1980s, the Metro IIIA was offered with two Pratt & Whitney Canada PT6A-45R turboprops in place of the Garrett units; however none were actually delivered. A special model was the SA227-BC Metro III built for Mexican airline AeroLitoral, which took delivery of 15 of the 18 of this model that were produced.

Improvements beyond the Metro III provided better systems, more power and a further increase in takeoff weight. This design effort resulted in the SA227 CC (for Commuter Category) and SA227-DC models, initially called the Metro IV then renamed Metro 23, so named as they were designed for certification under FAR Part 23 (Amendment 34) standards. A Metro 23 EF with an external pod under the lower fuselage for greater baggage capacity was also offered as well as an Expediter 23 and Merlin 23. The SA227-CC was an interim model with TPE331-11U engines and only a handful were built.

Further development

In the 1960s Swearingen Aircraft developed a prototype SA-28T eight-seat jet aircraft with a flapless delta wing. It shared the tail and cockpit with the Merlin/Metro. The two engines were to be Garrett TFE731 turbofans then in development; they were originally to be mounted on the aft fuselage, however during the course of design work their location was moved to under the high-mounted wing. Early flights were to be undertaken with General Electric CJ610 engines fitted. Development continued after Fairchild acquired the company, but the project was shut down nine weeks from first flight. It was later cut up as scrap and the fuselage used as a Metro display at trade shows.

At the 1987 Paris Air Show, Fairchild released details of proposed developments of the Metro designated the Metro V and Metro VI. These versions would have featured a longer fuselage with a taller "stand-up" cabin providing 69 in (180 cm) of interior height for passengers; a redesigned, longer wing; engines moved further out on the wing from the fuselage; a "T-tail" and various system improvements. A Merlin V corporate version of the Metro V was also planned. The Metro V was to be fitted with the same engines as the Metro 23 and the Metro VI was to be fitted with more powerful TPE331-14 engines. The Metro VI was shelved within months of being announced due to a lack of customer interest, but Fairchild did not proceed with the Metro V either.

One version that did see the light of day was the Metro 25, which featured an increased passenger capacity of 25 at the expense of the baggage space found in earlier models; the deletion of the left rear cargo door and the addition of a passenger door on the right-hand rear fuselage; and a belly pod for baggage. A Metro III was converted as a Metro 25 demonstrator, it flew in this configuration in October 1989. Also mooted but not built was the Metro 25J, which would have been another jet-powered aircraft with TFE731s in over-wing pods.

The type certificates for Metro and Merlin aircraft are currently held by M7 Aerospace.

Operational history


Bearskin Airlines C-FXUS SA227 CC model, Winnipeg c.2007
Bearskin Airlines C-FXUS SA227 CC model, Winnipeg c.2007

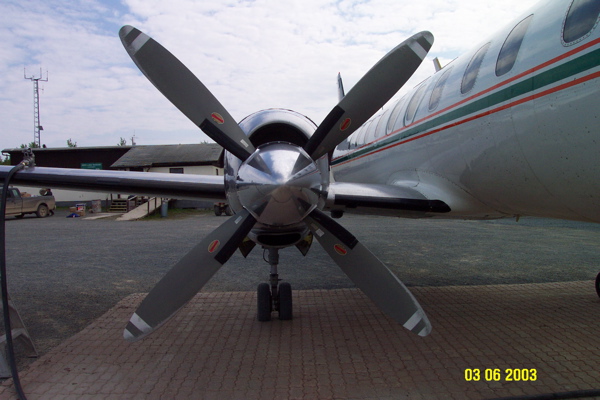

One of the advantages of the Perimeter Aviation modifications was using a four-bladed propeller that was less susceptible to stone chips on gravel runways
One of the advantages of the Perimeter Aviation modifications was using a four-bladed propeller that was less susceptible to stone chips on gravel runways

Two of the original Metro model were delivered in 1972 to Societe Miniere de Bakwanga (MIBA) in Kinshasa, Zaire, the first customer to put the Metro into service. The first airline to put them into service was Commuter Airlines in January 1973, followed shortly after by Air Wisconsin.

At least one Metro IIA flies in Canada with Perimeter Aviation. Two SA227-CCs are today registered with Canadian operator Bearskin Lake Air Service Ltd., while another two are operating in New Zealand. A fifth also flew with Bearskin Airlines but was destroyed in a mid-air collision in 1995.

In service with Perimeter Aviation in Canada, this long-term operator of the Metro II made a number of modifications to suit its use in northern and remote Canadian sites where rudimentary gravel "strips" were common. Some of the many innovative changes to the design of the Metro allowed the aircraft to fly more efficiently as well as cutting down on the "noise factor" that was attributed to the early models. The airline installed Garrett engines with quieter and more efficient four-bladed Hartzell propellers. Their Metros are also all equipped with modern avionics suites including certified AlliedSignal KLN 90B GPS.

Many of the improvements resulting in the Metro 23 came about during work to produce the military C-26B model for the United States Air Force.

In civilian service the type has proved to be popular, with sales in the 19-seat airliner market rivalled only by the Beech 1900. It is especially popular in Australia. Since the first example (a Merlin IVA) arrived in 1975, almost 20% of the fleet has operated in that country. As of December 2008, 61 Metros and Expediters are registered in Australia, more than all of its market rivals combined.

Metro production ended in 1998, however by this time Regional Jets were in vogue and turboprop types were out of favour with airlines, and several airframes remained unsold at the factory. The final aircraft, Metro 23 c/n DC-904B, was not delivered (to air charter company National Jet Aviation Services of Zelienople, Pennsylvania) until 2001. A total of 703 Metro, Expediter, Merlin IV series and C-26 series aircraft were built. To add to the confusion, 158 other SA226 and SA227 series aircraft were built as short-fuselage Merlin IIIs, IIIAs and IIIBs (123 SA226-Ts, of which 31 were Merlin IIIBs built with assigned C/Ns intermingled with those of Metro IIs), and Merlin IIICs and 300s (35 SA227-TTs, of which 25 were IIICs and 10 were 300s; again with assigned C/Ns intermingled with Metros, in this case Metro III/Merlin IVCs). In addition, three SA226-ATs were converted on the production line as SA226-TCs; four SA226-TCs were similarly converted as SA226-ATs; and one short-fuselage SA227-TT was converted as a long-fuselage SA227-AC. These eight aircraft each had two different constructor's numbers of various model names.

SA226 Series

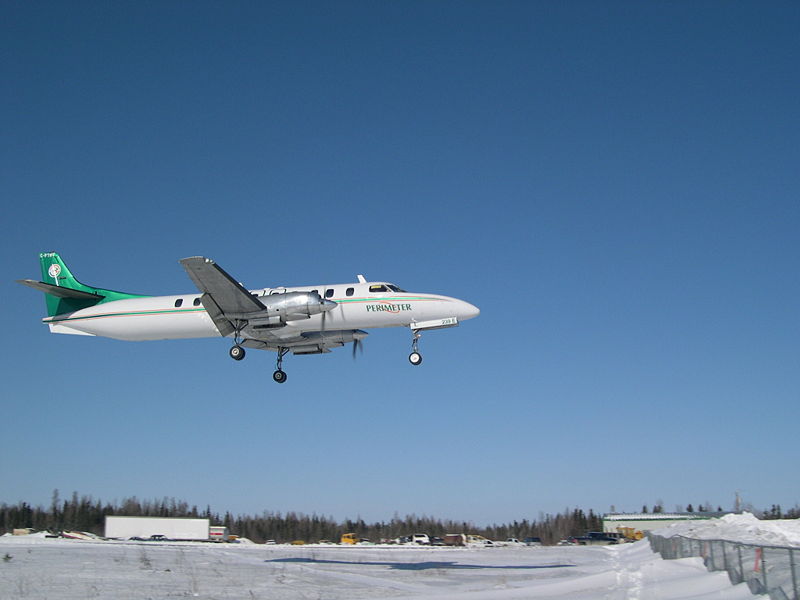

Perimeter Aviation C-FTNV SA226-TC Metro II landing at Tadoule Lake, Manitoba c.2006
Perimeter Aviation C-FTNV SA226-TC Metro II landing at Tadoule Lake, Manitoba c.2006
  • 198 SA226-TC Metro and Metro II
  • 56 SA226-AT Merlin IVA

SA227 Series

  • 291 Metro III
    • 273 SA227-AC (11 to US Armed Forces as C-26As)
    • 18 SA227-BC (3 to US Armed Forces as C-26Bs)
  • 43 SA227-AT
    • 21 Merlin IVC
    • 22 Expediter
  • 115 Metro 23
    • 5 SA227 CC
    • 110 SA227-DC (37 to U.S. Armed Forces as C-26Bs)

Variants

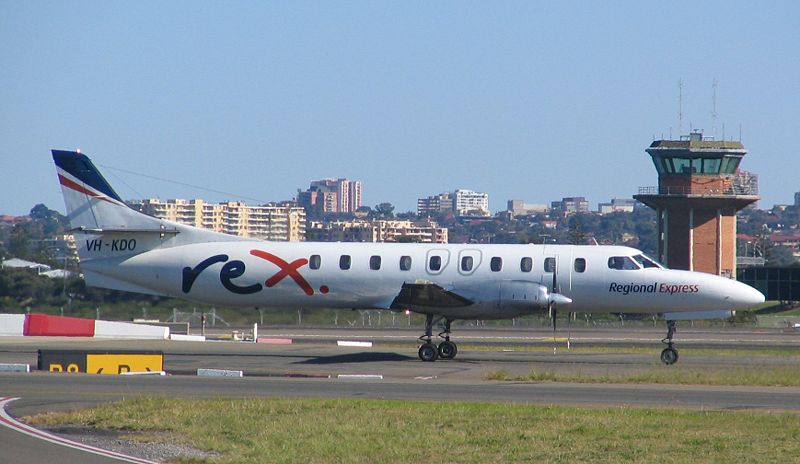

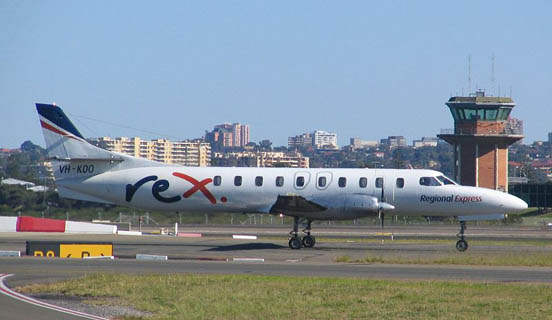

VH-KDO, a Metro 23 of Australian regional airline Regional Express (REX). The REX Metros have since been sold or transferred to subsidiary company Pel-Air.
VH-KDO, a Metro 23 of Australian regional airline Regional Express (REX). The REX Metros have since been sold or transferred to subsidiary company Pel-Air.

Civilian

  • Metro
  • Metro II
  • Merlin IVA
  • Metro III
  • Merlin IVC
  • Metro 23
  • Metro 23EF

Military

Operators

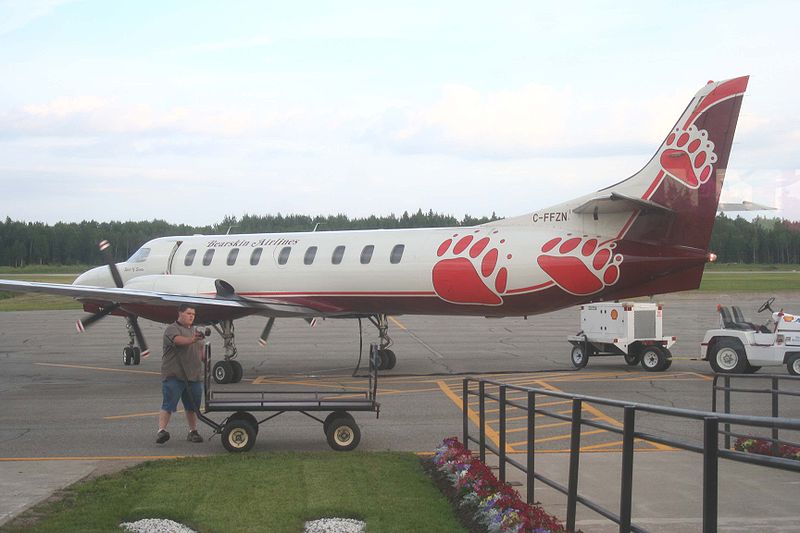

Bearskin Airlines C-FFZN SA227-AC Metroliner operating out of Red Lake, Ontario, c. 2007
Bearskin Airlines C-FFZN SA227-AC Metroliner operating out of Red Lake, Ontario, c. 2007

Civil operators

In August 2008 a total of 358 Fairchild Metro/Merlin aircraft (all variants) remained in airline service. Major operators include: Aeronaves TSM (12), Aeronova (5), Air Cerberus (7), Ameriflight (44), Baires Fly (6), Bearskin Airlines (13), Berry Aviation (8), Carson Air (13), IBC Airways (8), Key Lime Air (18), Merlin Airways (6), LC Busre (6), Pel-Air (14), Peninsula Airways (5), Perimeter Aviation (19), Sharp Airlines (6), Skippers Aviation (6), Sunwest Aviation (6), Toll Aviation (10) and Western Air (8). Some 70 other airlines also operate smaller numbers of the type.

Military Operators

 Argentina
 Australia.
 Belgium
 Colombia
 El Salvador
 Mexico
 Peru
 South Africa
 Sweden
 Thailand
 Trinidad and Tobago
 Venezuela

Crashs and incidents

Specifications (Metro III)

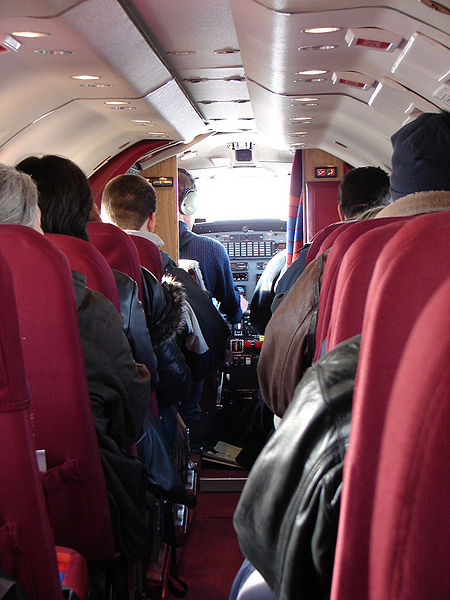

Interior cabin
Interior cabin

Data from The Encyclopedia of World Aircraft

General characteristics

  • Crew: Two (pilot & first officer), 1 pilot in cargo only configuration
  • Capacity: 19 passengers or a cargo volume of 143.5 ft³ (4.06 m³)
  • Length: 59 ft 4 in (18.09 m)
  • Wingspan: 57 ft 0 in (17.37 m)
  • Height: 16 ft 8 in (5.08 m)
  • Wing area: 310 ft² (28.71 m²)
  • Empty weight: 8,737 lb (3,963 kg)
  • Max takeoff weight: 14,500 lb or 16,000 lb, depending on model (6,577 kg or 7,257 kg)
  • Powerplant:Garrett AiResearch TPE-331turboprops with continuous alcohol-water injection (AWI), 1,000 shp (dry), 1,100 shp (with AWI) (745.5 kW, 820 kW) each
  • Propellers: four-bladed McCauley 4HFR34C652 or Dowty Rotol R.321/4-82-F/8

Performance
