de Havilland Dove

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/De_Havilland_Dove

DH.104 Dove
de Havilland Dove
Role short-haul airliner
Manufacturer de Havilland
First flight 25 September 1945
Number built 542

The de Havilland DH.104 Dove was a British monoplane short-haul airliner from de Havilland, the successor to the biplane de Havilland Dragon Rapide and was one of Britain's most successful post-war civil designs. The design came about from the Brabazon Committee report which called for a British designed short-haul feeder for airlines.

Production

Production of the Dove and its variants totalled 542 including 127 military Devon C.2s and 13 Sea Devons, the last example being delivered in 1967.

Service

The Dove first flew on 25 September 1945.

Variants


de Havilland Dove
de Havilland Dove
  • Dove 1 : Light transport aircraft, seating up to 11-passengers. Powered by two 340-hp (254-kW) De Havilland Gipsy Queen 70-4 piston engines.
    • Dove 1B : Dove Mk 1 aircraft, fitted with two 380-hp (283-kW) Gipsy Queen 70-2 piston engines.
  • Dove 2 : Executive transport version, seating up to six passengers. Powered by two 340-hp (254-kW) Gipsy Queen piston engines.
    • Dove 2B : Dove Mk 2 aircraft, fitted with two 380-hp (283-kW) Gipsy Queen 70-2 piston engines.
  • Dove 3 : Proposed high-altitude survey version. Not built.
  • Dove 4 : Military transport and communication version.
    • Devon C Mk 1 : Transport and communication version for the RAF.
    • Devon C Mk 2 : Transport and communications version for the RAF. Re-engined version of the Devon C Mk 1.
    • Sea Devon C Mk 20 : Transport and communications version for the Royal Navy.
  • Dove 5 : The Dove 5 was powered by more powerful engines. The aircraft was fitted with two 380-hp (283-kW) Gipsy Queen 70-2 piston engines.
  • Dove 6 : Executive transport aircraft. Uprated version of the Dove 2, powered by two 380-hp (283-kW) Gipsy Queen 70-2 piston engines.
    • Dove 6B : Stressed for operations at a maximum weight of 8,500lb (3856kg).
  • Dove 7 : Uprated version of the Dove 1, fitted with two 400-hp (298-kW) Gipsy Queen 70-3 piston engines.
  • Dove 8 : Uprated version of the Dove 2, fitted with two 400-hp (298-kW) Gipsy Queen 70-3 piston engines.
    • Dove 8A : Five seater version of the Dove 8 for the U.S. market. The Dove Custom 600 was an American designation of the Dove 8A.

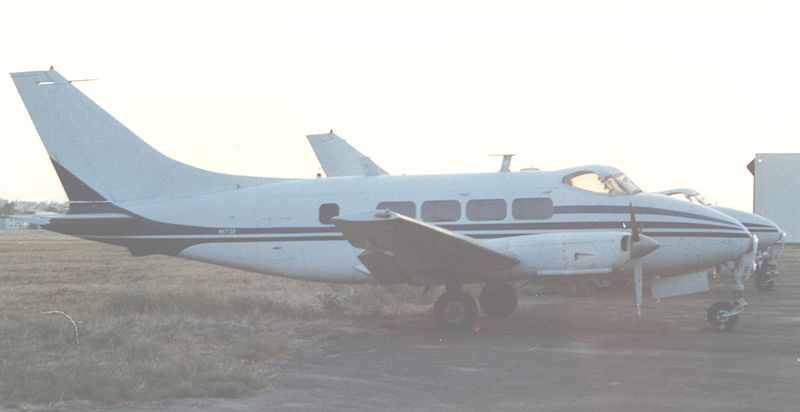

Riley Dove with Lycoming engines and taller swept fin at Long Beach airport in April 1987
Riley Dove with Lycoming engines and taller swept fin at Long Beach airport in April 1987
  • Carstedt Jet Liner 600 : Conversions of the Dove, carried out by Carstedt Inc, of Long Beach, California, USA. The aircraft were fitted with two 605-ehp (451-kW) Garrett AirResearch TPE 331 turboprop engines. The fuselage was lengthened to accommodate 18 passengers.
  • Riley Turbo Executive 400 : Conversions of the Dove, carried out by Riley Aircraft in the USA. The aircraft were fitted with two 400-hp (298-kW) Lycoming IO-720-A1A flat-eight piston engines. Some of the Riley conversions were fitted with a taller swept vertical fin and rudder.

Operators


de Havilland Devon
de Havilland Devon

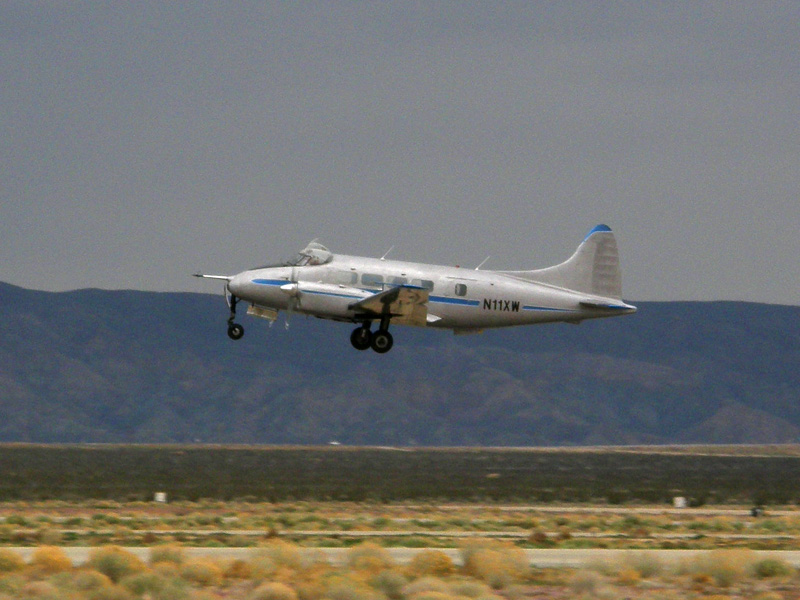

Dove 6A belonging to the National Test Pilot School departs the Mojave Airport
Dove 6A belonging to the National Test Pilot School departs the Mojave Airport

Civil operators

 Australia
 Belgium
 Burma
 Chile
 Germany
 India
 Rhodesia

 South Africa

 Sudan
 United Kingdom
 United States
To cleanup

Military operators

 Argentina
 Belgian Congo
 Biafra
 Brazil
 Ceylon
 Egypt
 Ireland
 Ethiopia
 India
 Iraq
 Jordan
 Lebanon
 Malaysia
 New Zealand
 Pakistan
 Paraguay
 South Africa
 Sweden
 United Kingdom

Specifications (Dove 5)

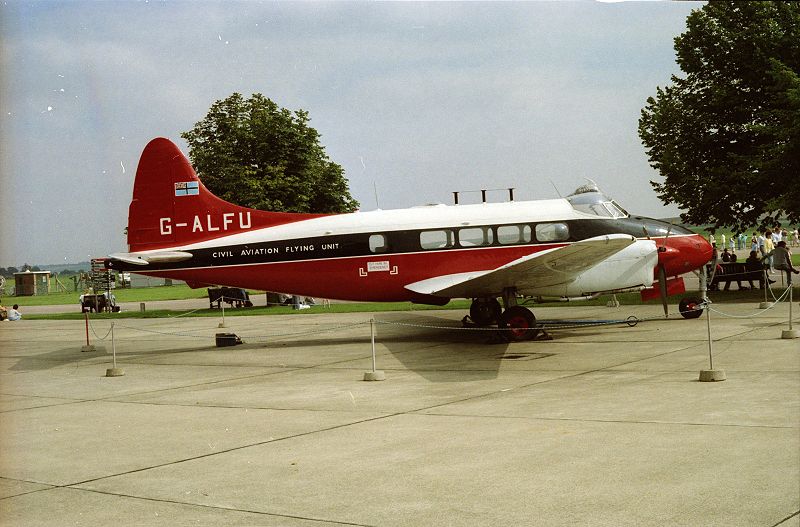

Preserved DH-104 aircraft G-ALFU of CAA at Duxford Airfield, EGSU.
Preserved DH-104 aircraft G-ALFU of CAA at Duxford Airfield, EGSU.

Data from Jane's

General characteristics

  • Crew: 2
  • Capacity: 8 passengers
  • Length: 39 ft 3 in (11.96 m)
  • Wingspan: 57 ft (17.37 m)
  • Height: 13 ft 4 in (4.06 m)
  • Wing area: 335 sq ft (31.1 m²)
  • Empty weight: 5,725 lb (2,600 kg)
  • Loaded weight: 8,800 lb (4,000 kg)
  • Powerplant:de Havilland Gipsy Queen 70 Mk.2 geared, supercharged 6-cylinder in-line inverted air-cooled engine, 380 bhp (283 kW) each

Performance

See also

Related development

External links
