de Havilland Express

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/De_Havilland_Express

D.H.86 Express

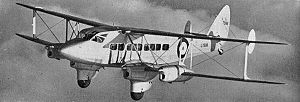

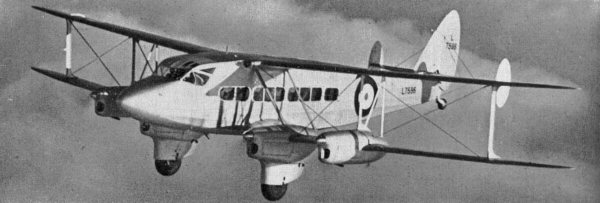

A D.H.86B of the RAF
Role Passenger transport / trainer
Manufacturer de Havilland
First flight 14 January 1934
Introduced 1934
Primary users Imperial Airways
Qantas
Royal Air Force
Royal Australian Air Force
Number built 62

The de Havilland Express was a four-engined passenger aircraft from the 1930s manufactured by the de Havilland Aircraft Company.

Development

During 1933, talks between the governments of United Kingdom, India, Malaya, the Straits Settlements and Australia resulted in an agreement to establish an Empire Air Mail Service. The Australian Government called for tenders on 22 September 1933 for the Singapore-Australia legs of the route, continuing as far south as Tasmania. On the following day Qantas, anticipating success in contracting for the Singapore-Brisbane leg, placed an order with de Havilland for an as-yet non-existent aircraft to be designated the de Havilland 86, the prototype to fly by the end of January 1934. This order was soon followed by one from Holymans Airways of Launceston, Tasmania to operate the Bass Strait leg of the service. The D.H.86 was initially styled the Express or Express Air Liner although the name was soon discontinued.

The D.H.86 was conceptually a four-engined enlargement of the successful de Havilland Dragon, but of more streamlined appearance with tapered wings and extensive use of metal farings around struts and undercarriage. The most powerful engine made by de Havilland, the new 200 hp (149 kW) Gipsy Six, was selected. For long-range work the aircraft was to carry a single pilot in the streamlined nose, with a wireless operator behind. Maximum seating for ten passengers was provided in the long-range type, however the short-range Holyman aircraft were fitted with twelve seats.

The prototype D.H.86 first flew on 14 January 1934, but the Qantas representative Lester Brain immediately rejected the single pilot layout because he anticipated pilot fatigue over long stretches, and the fuselage was promptly redesigned with a dual-pilot nose. Only four examples of the single-pilot D.H.86 were built, and of these the prototype was rebuilt as the dual-pilot prototype. When she entered service in October 1934 the first production aircraft, Holymans' single-pilot D.H.86 Miss Hobart, was the fastest British-built passenger aircraft operating anywhere in the world. Despite de Havilland's predictions to the contrary, the dual pilot type with its lengthened nose proved to be even faster.

Investigations in 1936 following a series of fatal crashes resulted in late production aircraft being built with additional fin area in the shape of vertical "Zulu Shield" extensions to the tail planes to improve lateral stability - these aircraft were designated D.H.86Bs.

Operational History

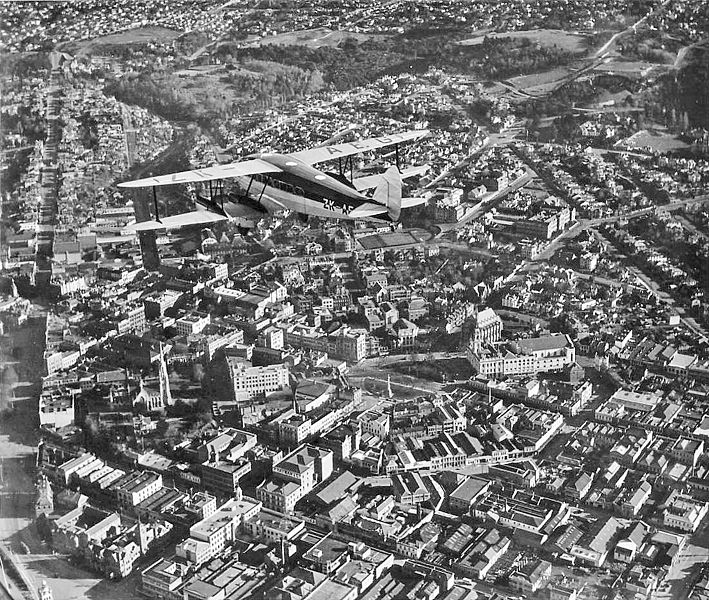

A Union Airways of New Zealand de Havilland D.H.86 flies over Dunedin.
A Union Airways of New Zealand de Havilland D.H.86 flies over Dunedin.

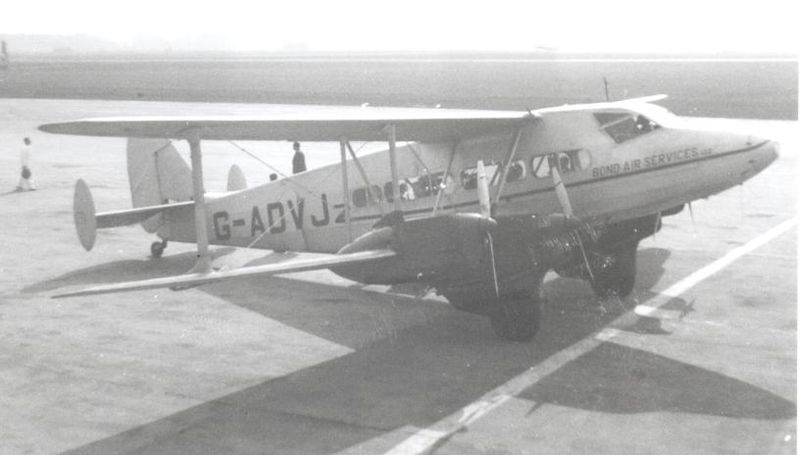

DH.86B G-ADVJ of charter airline Bond Air Services at Liverpool (Speke) Airport in March 1950
DH.86B G-ADVJ of charter airline Bond Air Services at Liverpool (Speke) Airport in March 1950

Dual pilot D.H.86s were built for Imperial Airways and given the class name Diana. They were used on European and Empire air routes including the run from Khartoum to Lagos.

Railway Air Services (RAS) operated a fleet of seven Expresses between 1934 and 1946. RAS used the aircraft on their UK scheduled flight network including their trunk route from London (Croydon) via Birmingham, Manchester/Liverpool to Glasgow.

D.H.86s were also built for New Zealand's Union Airways, flying between Auckland, Palmerston North and Wellington. During World War II, the New Zealand aircraft were fitted with bomb racks and used by the Royal New Zealand Air Force to hunt German raiders and Japanese shipping. The survivors served with NAC post war.

A total of 15 D.H.86s, D.H.86As and D.H.86Bs operated commercially within Australia and New Guinea up to the outbreak of World War II. Eight D.H.86A and D.H.86B aircraft were impressed into the Royal Australian Air Force and served as A31-1 to A31-8 during the War. Some served as air ambulances in the Middle East, while others did sterling work as transport aircraft and air ambulances in Australia and New Guinea.

A total of 62 D.H.86s of all types were built. Most of those still flying in Europe at start of World War II, except for the Railway Air Services aircraft, were taken into military service, mostly for communications and radio navigational training. A few Expresses survived the war and were used by UK air charter operators until the last example was burnt out in 1958.

Technical Deficiencies

This section is largely sourced from the book Air Crash, Volume One by Macarthur Job.

Seriously lacking in directional stability, the D.H.86s were frequently in trouble. On 19 October 1934 Holyman's VH-URN Miss Hobart was lost in Bass Strait with no survivors. Flotsam that may have been wreckage from the aircraft was seen from the air three days later but surface ships failed to locate it in rough seas; the aircraft had effectively vanished. At the time Miss Hobart disappeared the design of the aircraft was not suspect, and it was thought that an accident may had occurred when Captain Jenkins and the wireless operator/assistant pilot Victor Holyman (one of the proprietors of Holymans Airways) were swapping seats in mid flight. However following the loss of Qantas' VH-USG near Longreach four weeks later while on its delivery flight, it was found that the fin bias mechanisms of the crashed aircraft and at least one other were faulty, although it is doubtful that this had any direct bearing on the accidents other than perhaps adding to the aircraft’s lack of inherent stability. Further investigation revealed that VH-USG had been loaded with a spare engine in the rear of the cabin, and that one of the crew members was in the lavatory in the extreme aft of the cabin when control was lost. It was theorised that the aft centre of gravity condition that thus existed resulted in a loss-of-control at an altitude insufficient for recovery (the aircraft was at an estimated height of 1,000 ft (300 m) prior to the crash).

On 2 October 1935 Holyman's VH-URT Loina was also lost in Bass Strait, again with no survivors. This time a significant amount of wreckage was recovered from the sea and from beaches on Flinders Island. Investigation of the wreckage revealed a section of charred carpet on a piece of cabin flooring from just ahead of the lavatory door. It was thought possible that a small fire from a dropped cigarette had led to someone running aft suddenly to stamp it out – the sort of sudden change in weight distribution that could set up a fatal loss of directional control while the aircraft was on a low-speed landing approach.

The Royal Air Force's Aeroplane and Armament Experimental Establishment tested the D.H.86 design in 1936 following three fatal crashes in Europe. It would be forty years before the report was published – one of the most damning indictments ever written on the design of a commercial airliner put into series production. The D.H.86 had been rushed from design concept to test flight in a record four months to meet the deadlines set by the Australian airmail contracts, and a lot of attention to detail had been ignored. It was a big aircraft for its power, and as a result very lightly built. There was poor response to control movements in certain speed ranges, the wings were inclined to twist badly if the ailerons were used coarsely and, most seriously, the vertical tail surface was of inadequate area. The result was an aircraft that, although quite safe under normal conditions, could rapidly get out of control under certain flight regimes.

Although the control problems were overcome on later-manufactured D.H.86Bs, the results of the tests do not appear to have been communicated to Australia and the D.H.86s already in use were never modified to improve their safety. This lack of communication may have caused a number of later accidents including at least one of two further fatal disasters in commercial service. The mid-air break-up of Qantas' VH-USE Sydney in a thunderstorm near Brisbane in 1942 with the loss of nine lives was possibly unavoidable, however the fin was found almost a mile away from the main wreckage, which was burnt without an investigation being carried out. The accident involving MacRobertson Miller Airlines’ ex-Qantas aircraft VH-USF at Geraldton on 24 June 1945 most likely was entirely avoidable had the AaAEE report been communicated to Australia. On its first commercial flight for its new owners after military service, the pilot and a passenger were killed in a classic loss-of-control accident while taking off with a heavy load in gusty conditions.

Another D.H.86, VH-USW (the former Holyman Airways Lepena), was bought by MacRobertson Miller Airlines at much the same time as VH-USF and was the last of the type to fly in Australia. MMA sold the eleven-year-old aircraft to an English company late in 1946; it was abandoned in India in an "unsafe state" while on her delivery flight. Edgar Johnston, the Assistant Director General of the Australian Department of Civil Aviation, then had it scrapped at Australian Government expense to make sure that it never flew again.

The Political and Commercial Consequences

Following the first three fatal Australian D.H.86 accidents and a forced landing to VH-USW Lepena on 13 December 1935 (a Friday) when the pilot believed his aircraft was about to break up in mid-air, the Australian Government temporarily suspended the type's Certificate of Airworthiness. This caused outrage in Britain as it reflected on the whole British aircraft industry. In fact, the D.H.86 had approached the limits to which traditional "plywood and canvas" aircraft construction could be taken, and was obsolete compared to all-aluminium stressed-skin aircraft like the Boeing 247 and the Douglas DC-1 that were already flying before it was even designed (and the immortal Douglas DC-3 had its first flight just four days after the forced-landing of VH-USW). Under pressure from Holymans and other companies, the Australian Government rescinded its ban on the import of American aircraft during 1936, and for the next 25 years most large commercial aircraft imported into Australia were of American manufacture.

Variant

  • D.H.86 : Four engined medium transport biplane. First production version with single-pilot cockpit.
  • D.H.86A : Improved version with wider cockpit for two pilots.
  • D.H.86B : Fitted with auxiliary endplate fins to the tailplane.

Operators

Civil Operators

 Australia
 Ireland
 New Zealand
 United Kingdom

Military Operators

 Australia
 Finland
 New Zealand
 Rhodesia
 United Kingdom

Specifications (D.H.86A)

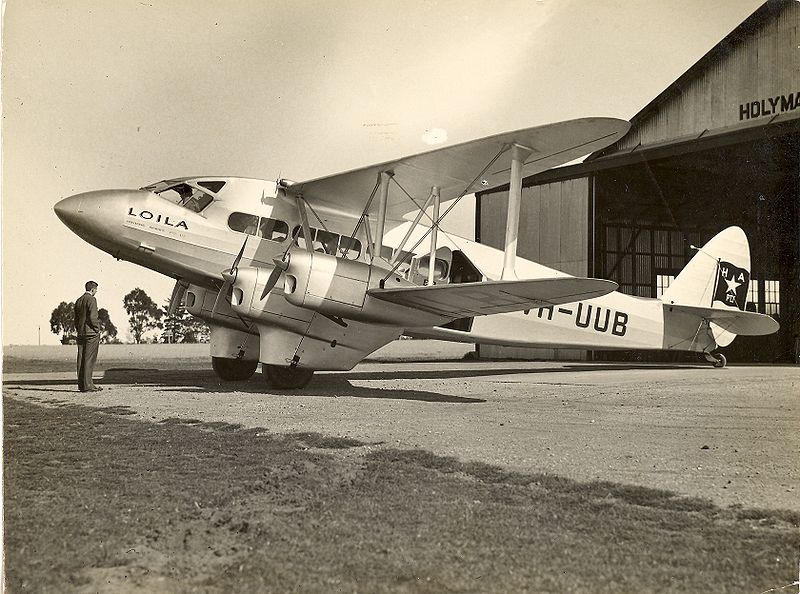

VH-UUB Loila
VH-UUB Loila

General characteristics

  • Crew: Two (pilot and co-pilot)
  • Capacity: 10-12 passengers
  • Length: 46 ft 1 in (14.1 m)
  • Wingspan: 64 ft 6 in (19.7 m)
  • Height: 13 ft 3 in (4 m)
  • Wing area: 638 ft² (59.3 m²)
  • Empty weight: 6,250 lb (2,830 kg)
  • Loaded weight: 10,250 lb (4,650 kg)
  • Powerplant:de Havilland Gipsy Six inline engine, 200 hp (150 kW) each

Performance

See also

Related development

Related lists
