Cessna CitationJet

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Cessna_CitationJet

CitationJet / CJ1/1+
CJ2/2+ / CJ3 / CJ4

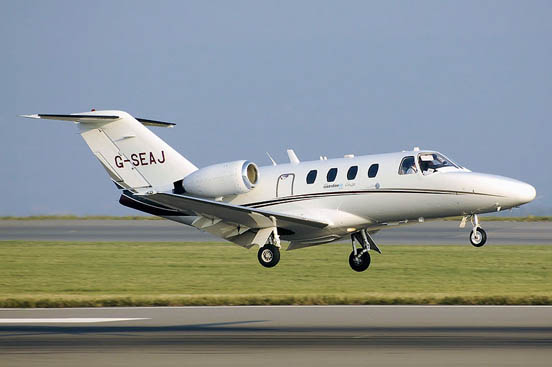

A Cessna 525 CitationJet
Role Business Jet
National origin United States
Manufacturer Cessna
First flight 1991
Status In production
Variants Cessna 526 CitationJet

The Cessna CitationJet/CJ series (Model 525) are American turbofan-powered light corporate jets built by the Cessna Aircraft Company in Wichita, Kansas. The Citation brand of business jets encompasses six distinct "families" of aircraft. The Model 525 CitationJet was the basis for one of these families, which encompasses the CJ1, CJ1+, CJ2, CJ2+, CJ3, and CJ4 models.

Development

The original Model 525 CitationJet was developed as a replacement for the Citation and Citation I, being launched in 1989. Basically an all new aircraft, the CitationJet used a modified version of the Citation's forward fuselage, but with a new supercritical laminar flow wing, and a new T-tail configured tailplane. It is powered by two Williams FJ44 turbofans, and features EFIS avionics and single pilot certification. The CitationJet's fuselage is 11in (27cm) shorter than the Citation I's, but a lowered center aisle for increased cabin height. The CitationJet's first flight was on April 29, 1991, with its first delivery on March 30, 1993.

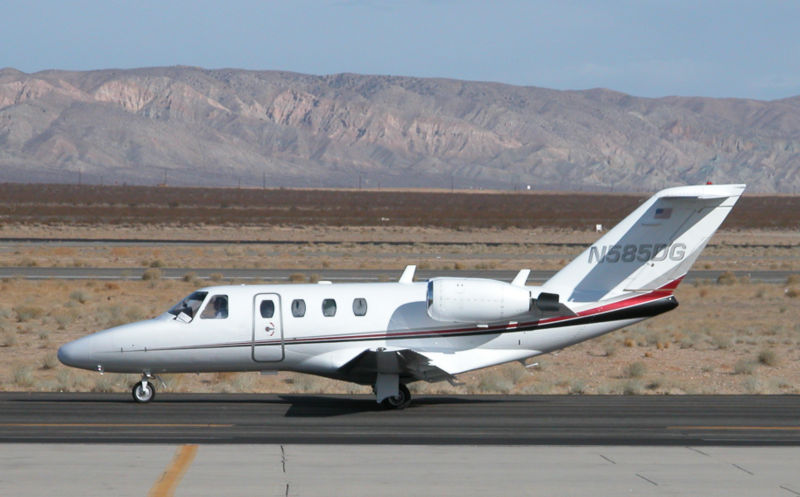

CitationJet taxiing after landing at Mojave Airport in 2007
CitationJet taxiing after landing at Mojave Airport in 2007

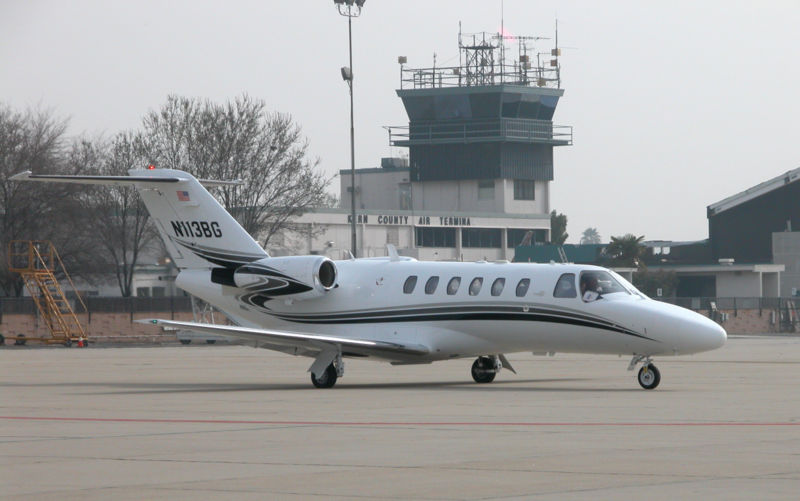

Cessna Citation CJ2 (N113BG), Bakersfield, California
Cessna Citation CJ2 (N113BG), Bakersfield, California

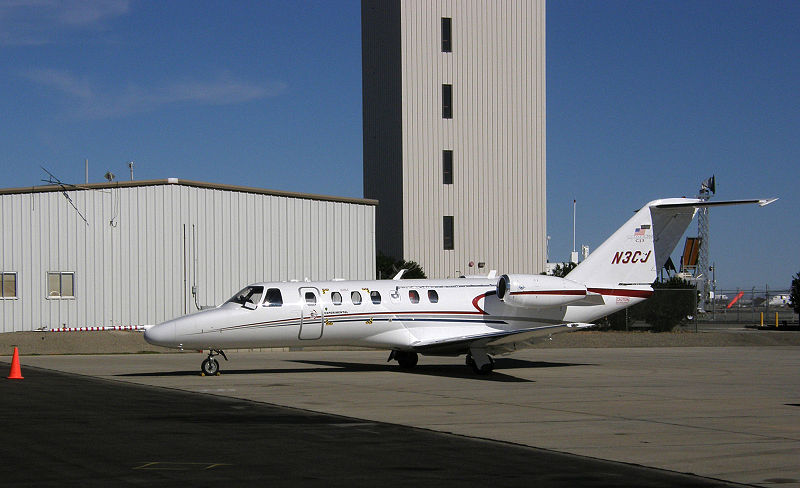

A Citation CJ3 flight test aircraft at the National Test Pilot School, Mojave in 2007
A Citation CJ3 flight test aircraft at the National Test Pilot School, Mojave in 2007

The Cessna Citation CJ1 (also Model 525) was developed as an improved version of the original CitationJet. The CJ1 improved on the CitationJet by adding a more-modern EFIS avionics suite and a moderate increase in maximum takeoff. The CJ1 has been replaced by the CJ1+, which shares the same airframe but has an additional updated avionics package, and FADEC to allow the engines to be controlled by computer rather than mechanical controls.

The Cessna Citation CJ2 (Model 525A) is a 5' stretch extension of the Cessna Citation CJ1 (Model 525) first delivered in the year 2000. The 525A comes in two forms, the original CJ2 and the newer CJ2+, which has updated avionics, increased performance, and FADEC controls. The CJ2+ was first delivered in April 2006.

The Cessna Citation CJ3 (Model 525B) is part of the Citation business jet family. It is a stretch extension of the CJ2, which itself was a stretch of the CJ1. The aircraft was unveiled in September 2002 at the National Business Aviation Association (NBAA) convention. It took its first and second flight on the same day on April 17, 2003. It was FAA certifed in October 2004 and delivery of the CJ3 began in December of that year.

The CJ3's cabin comes standard with six club seats in a center-style configuration, although it is customizable to the owner's specs. The cockpit was originally designed for a single pilot operation, but it can accommodate up to two crew members. Its flight deck is composed of a state of the art avionics system, which was built by Rockwell. It has external baggage access for added convenience. There is also a cabin baggage compartment which is accessible in flight. It also features a trailing-link tricycle landing gear.

The Cessna Citation CJ4 (Model 525C) is part of the Citation business jet family. It is a stretch extension of the CJ3, adding an additional two feet to the CJ3 cabin. The CJ4 also introduces a different wing design than the earlier models. It borrows the moderately swept wing from the Citation Sovereign. The CJ4 was introduced in 2006. The first CJ4 business jet lifted off from McConnell AFB at Wichita, KS on Monday May 5th, 2008, with the first deliveries starting up in 2010.

Design

The CitationJet is a low-wing cantilver monoplane with retractable tricycle landing gear, a T-tail pressurised cabin and powered by two turbofan engines pylon mounted on the rear fuselage.

Variants

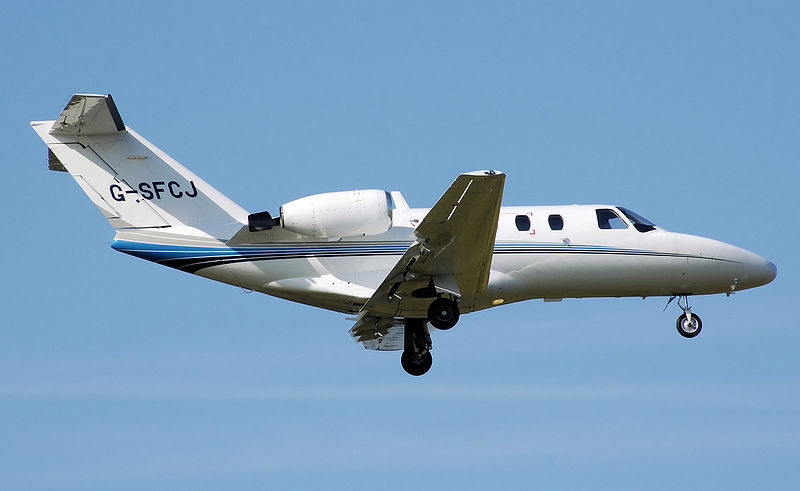

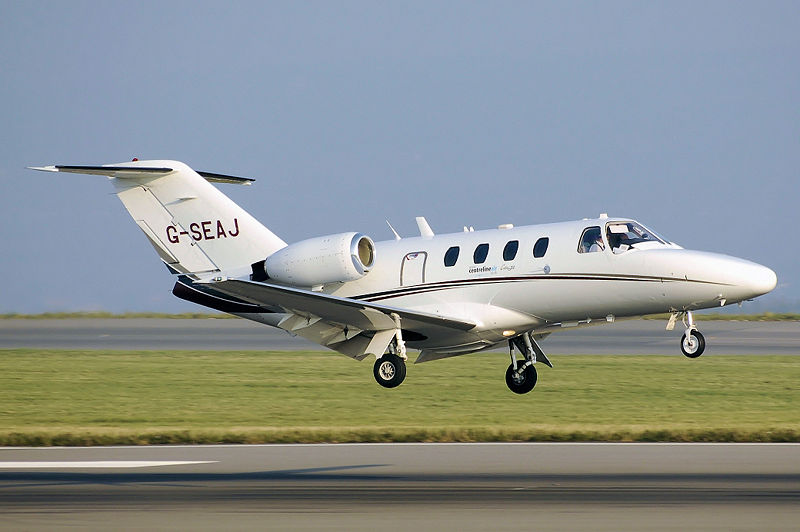

Cessna 525 CitationJet lands
Cessna 525 CitationJet lands

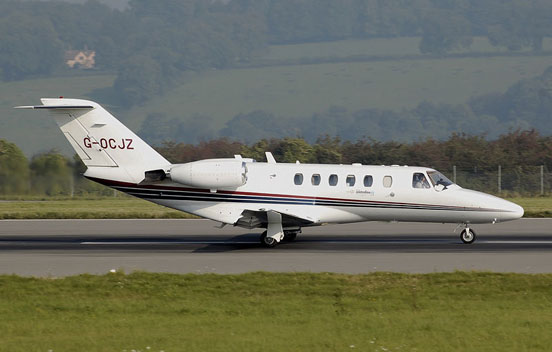

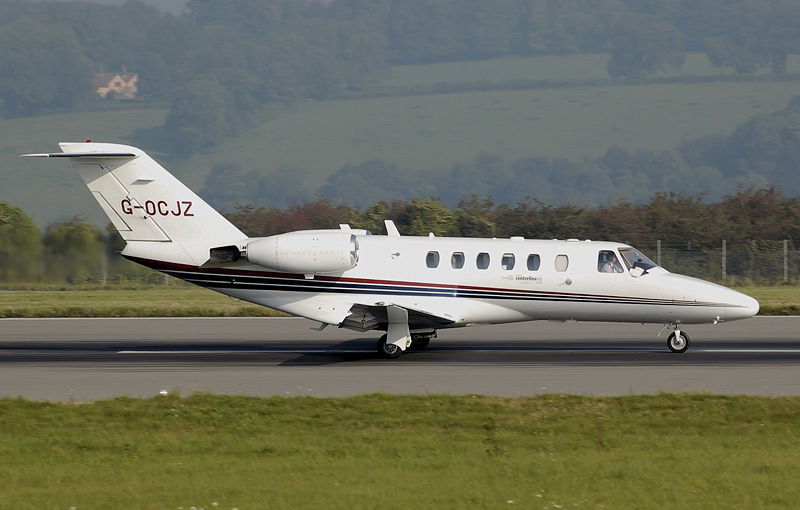

Cessna 525A CitationJet CJ2 on the takeoff run at Bristol Airport, England
Cessna 525A CitationJet CJ2 on the takeoff run at Bristol Airport, England

Model 525

Citation Jet
Model 525 serial numbers 0001 to 0359 are marketed as the Citation Jet and are powered by two Williams International FJ-44-1A turbofans.
Citation Jet 1
Model 525 serial numbers 0360 to 0599 are marketed as the Citation Jet 1 and are powered by two Williams International FJ-44-1A turbofans
Citation Jet 1+
Model 525 serial number 0600 and higher are marketed as Citation Jet 1+ and are powered by two Williams International FJ-44-1AP turbofans

Model 525A

Citation Jet 2
Model 525A serial numbers 0001 to 0299 are marketed as the Citation Jet 2 and are powered by two Williams International FJ-44-2C turbofans
Citation Jet 2+
Model 525A serial numbers 0300 and higher are marketed as the Citation Jet 2+ and are powered by two Williams International FJ-44-24 turbofans.

Model 525B

Citation Jet 3
Model 525B are marketed as the Citation Jet 3 and are powered by two Williams International FJ-44-3A turbofans.

Model 525C

  • Cessna Citation CJ4 (Model 525C)

Specifications (Citation CJ1+)

Data from http://cj1plus.cessna.com/specifications.chtml

General characteristics

  • Crew: 1
  • Capacity: 5 passengers
  • Payload: 615 lb (279 kg)
  • Length: 42 ft 7 in (12.98 m)
  • Wingspan: 46 ft 11 in (14.30 m)
  • Height: (4.19 m)
  • Empty weight: 6,765 lb (3,069 kg)
  • Useful load: 3,835 lb (1,740 kg)
  • Max takeoff weight: 10,700 lb (4,853 kg)
  • Powerplant:Williams FJ44-1AP turbofan, 1,965 lb (8.74 kN) each

Performance

See also

Related development

External links
