Britten-Norman Trislander

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Britten-Norman_Trislander

Trislander
Role Airliner
Manufacturer Britten-Norman
First flight 1970
Primary user Aurigny Air Services
Number built 72
Developed from Britten-Norman Islander

The Britten-Norman Trislander (more formally designated the BN-2A Mk III Trislander) is an 18-seat three-engined piston-powered civilian utility aircraft produced in the 1970s and early 1980s by Britten-Norman of Britain. The aircraft were produced on the Isle of Wight. They were also produced in Romania, and delivered via Belgium to Britain for their certification.

The aircraft are known locally in the Channel Islands as "Joeys", and one Aurigny Air Services craft carries the registration G-JOEY.

Design and development

Designed by John Britten and Desmond Norman, the Trislander is a further development of Britten-Norman's better-known Islander aircraft in order to give it a larger carrying capacity. In comparison with the Islander, the Trislander has a stretched fuselage, strengthened, fixed tricycle landing gear and a third engine. The third engine is a tractor engine mounted on the fuselage centre line atop the vertical stabilizer.

The prototype of the Trislander, which was constructed from the original second Islander prototype, first flew on 11 September 1970. Initial production ceased in 1982 after 73 were ordered. As of January 2008, Britten-Norman is preparing a second production run of the Trislander.

The Trislander has exceptional low speed handling characteristics, extended endurance, increased payload, low noise signature and economical operating costs. Capable of taking off from a 450 meter long landing strip, the Trislander can readily operate from unprepared surfaces.

Variants

BN-2A Mk III-1
First production version, with short nose.
BN-2A Mk III-2
Lengthened nose and higher operating weight.
BN-2A Mk III-3
Variant certified for operation in the United States, and with front two engines fitted with 3 blade propellers, to stop the outer edge going at supersonic speeds, therefore reducing noise.
BN-2A Mk III-4
III-2 fitted with rocket-assisted takeoff equipment.
Trislander M
Proposed military version, not built.

Operators/Former Operators


A Trislander aircraft at Guernsey Airport, on the Isle of Guernsey, in the Channel Islands, operated by Aurigny Air Services.
A Trislander aircraft at Guernsey Airport, on the Isle of Guernsey, in the Channel Islands, operated by Aurigny Air Services.

A Trislander, operated by Blue Islands Airline, departing Shoreham Airport, Shoreham-by-Sea, West Sussex, England.
A Trislander, operated by Blue Islands Airline, departing Shoreham Airport, Shoreham-by-Sea, West Sussex, England.

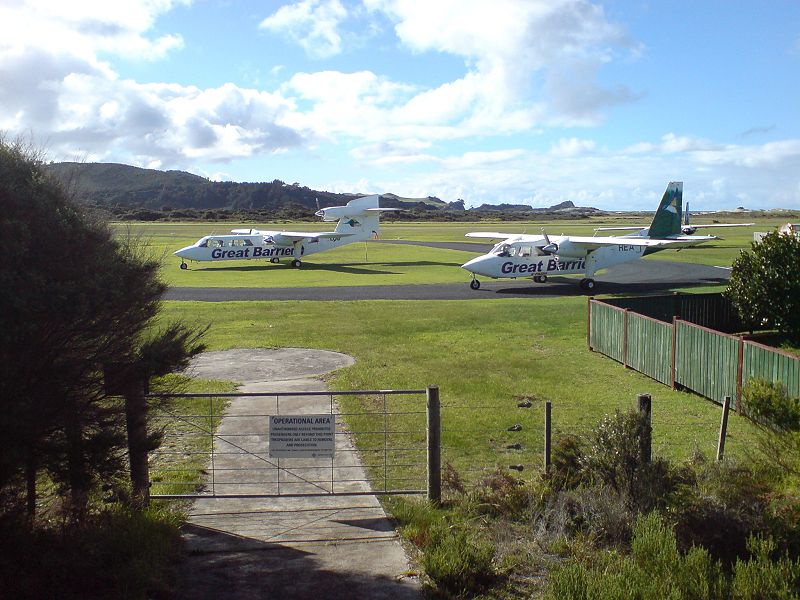

Trislander at the Great Barrier Aerodrome, operated by Great Barrier Airlines, Great Barrier Island, New Zealand.
Trislander at the Great Barrier Aerodrome, operated by Great Barrier Airlines, Great Barrier Island, New Zealand.
External images
Aurigny Air Services Trislander (G–JOEY)
Antigua & Barbuda
  • LIAT
  • Montserrat Air Services
Barbados
  • Aero Services
Cayman Islands
 Jamaica
 New Zealand
 Panama
  • PARSA
  • Aero Taxi
  • Chitreana de Aviacion
 United States
 Colombia
  • Tavina
 Vanuatu
Puerto Rico
  • LAP
 United Kingdom
 Venezuela

Accidents

The most recent crash was 15 December 2008 by LAP in Puerto Rico. The aircraft crashed somewhere near the Turks and Caicos. This was the first crash since 2005. The aircraft probably crashed into the sea shortly after the distress call. A spokesman for the Asociación Nacional de Pilotos reported that the pilot had his licence suspended in October 2006.

Specifications (III-2)

Data from

General characteristics

  • Crew: 1
  • Capacity: 17 passengers
  • Length: 49 ft 3 in (15.01 m)
  • Wingspan: 53 ft 0 in (16.15 m)
  • Height: 14 ft 2 in (4.32 m)
  • Wing area: 337 ft² (31.31 m²)
  • Empty weight: 5,843 lb (2,650 kg)
  • Gross weight: 10,000 lb (4,536 kg)
  • Powerplant: 3 × Avco Lycoming O-540-E4C5 horizontally-opposed piston engine, 260 hp (194 kW) each

Performance

  • Maximum speed: 167 mph (267 km/h)
  • Range: 1,000 miles (1,609 km)
  • Service ceiling: 13,150 ft (4,010 m)
Notes
Bibliography

External links
