Learjet 45

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Learjet_45

Learjet 45

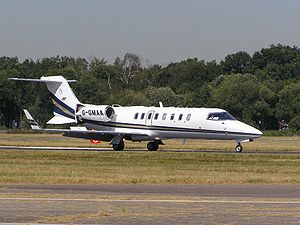

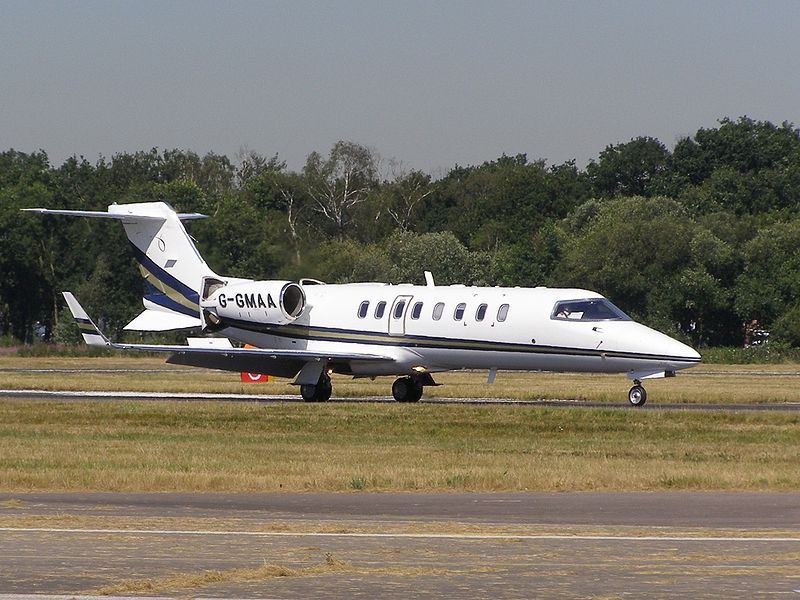

Gama Aviation Learjet 45 at Farnborough, England in July 2006
Role Business Jet
Manufacturer Bombardier Aerospace
First flight October, 1995
Introduction January, 1998
Number built 264+

The Learjet 45 aircraft is a mid-sized business jet aircraft produced by Bombardier Aerospace.

History

The development of the LJ45 was announced by Bombardier in September, 1992, and first flight of the prototype aircraft took place on October 7, 1995, the 32nd anniversary of the first flight of the Learjet 23. FAA certification was delayed, and finally granted in September 1997, with the first customer aircraft subsequently delivered in January, 1998. The cockpit is equipped with a four-screen Honeywell Primus 1000 EFIS avionics system. The aircraft is powered by two FADEC-controlled Honeywell TFE731-20 engines, a version developed specifically for this airframe. An internal APU provides ground power.

The Learjet 45XR is an upgraded version introduced in June, 2004, offering higher takeoff weights, faster cruise speeds and faster time-to-climb rates as compared to the LJ45. The increases are due to the upgrading of the engines to the TFE731-20BR configuration. LJ45 owners can upgrade their aircraft through the incorporation of several service bulletins.

In size, the LJ45 and LJ45XR fit between the smaller Learjet 31 and Learjet 40 and the larger Learjet 60 in the Lear product line. De Havilland Canada builds the LJ45s wings, and Bombardier subsidiary Short Brothers of Northern Ireland builds the fuselage and empennage.

The Learjet 45 is also one of the main airplanes featured in the Microsoft Flight Simulator franchise.

Incidents

The Mexican Interior Minister (Secretario de Gobernación) Juan Camilo Mouriño died on November 4, 2008 in a plane accident involving a Learjet 45 XR.

Specifications

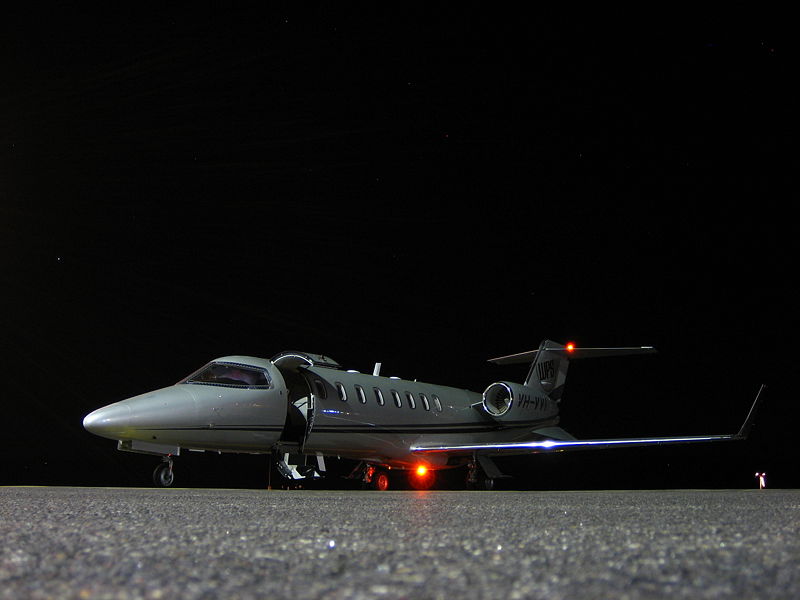

Nighttime View of the Learjet 45
Nighttime View of the Learjet 45

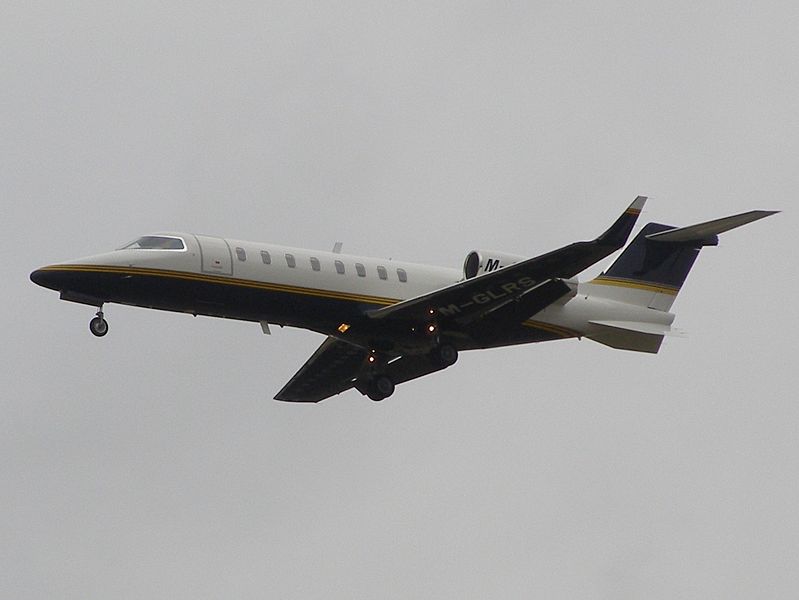

Isle of Man registered Learjet 45
Isle of Man registered Learjet 45

Learjet 45 parked Gunnison-Crested Butte Airport.
Learjet 45 parked Gunnison-Crested Butte Airport.

General characteristics

  • Crew: 2
  • Capacity: 9 passengers which includes one on the lavatory which is certified as a seat
  • Length: 57 ft 6 in (17.68 m)
  • Wingspan: 47 ft 10 in (14.57 m)
  • Height: 14 ft 1 in (4.30 m)
  • Wing area: 311 ft² (29.0 m²)
  • Empty weight: 13695 lb (6212 kg)
  • Max takeoff weight: 21,500 lb (9750 kg)
  • Powerplant:Honeywell TFE731-20 , 3500 lb (15.56 kN) each

Performance

See also

Comparable aircraft

External links
