MD Helicopters MD 600

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/MD_Helicopters_MD_600

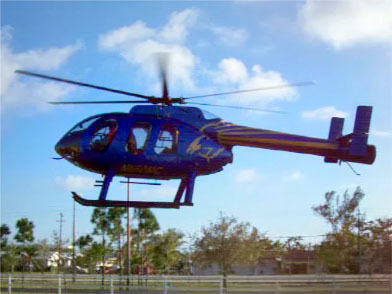

MD 600N
MD 600N (Helicopters of America), with NOTAR
Role Light utility helicopter
Manufacturer McDonnell Douglas Helicopter Systems
MD Helicopters, Inc.
Primary user United States Border Patrol
Developed from MD Helicopters MD 500

The MD Helicopters MD 600N is a light utility civilian helicopter. It is a stretched eight-seat development of the five-seat MD 520N helicopter.

Design and development

McDonnell Douglas Helicopter Systems (MD Helicopters since 1999) first announced it was developing a stretched MD 520N in late 1994, at that time designated the MD 630N. The prototype, a modified MD 530F, had made its first flight on November 22 1994. McDonnell Douglas gave the go-ahead for the production aircraft, redesignated the MD 600N, in March 1995.

McDonnell Douglas stretched the MD 520N fuselage by inserting a plug aft of the cockpit/cabin bulkhead and stretching the NOTAR tail boom. The larger fuselage allows for an extra (middle) row of seats. Other differences compared with the MD 520N include a new six blade main rotor (the MD 520N has a five blade unit) and a more powerful Allison (now Rolls-Royce) Model 250 turboshaft.

The prototype was modified to MD 600N standard with a production standard engine and tail boom and flew in November 1995, followed the next month by the first MD 600N production prototype. Certification was awarded on May 15 1997, and deliveries began that June.

Following the 1997 Boeing/McDonnell Douglas' merger, Boeing sold the former MD civil helicopter lines to Netherlands-based RDM Holdings in early 1999.

Operators

 United States
 Turkey
  • Turkish National Police

Specifications (MD 600N)

Data from The International Directory of Civil Aircraft, 2003-2004

General characteristics

  • Crew: 1-2
  • Capacity: 8 total
  • Length: 35 ft 5 in (11.79 m)
  • Rotor diameter: 27 ft 6 in (8.38 m)
  • Height: 8 ft 9 in (2.65 m)
  • Disc area: 594.0 sq ft (55.2 m²)
  • Empty weight: 2,100 lb (952 kg)
  • Max takeoff weight: 4,100 lb (1,860 kg)
  • Powerplant: 1× One Allison Model 250-C47 Turboshaft, 600 hp (447 kW)

Performance

See also

Related development

Comparable aircraft

Related lists

External links
