Bell 47

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Bell_47

Bell 47/H-13 Sioux
A Bell Model 47G
Role Multipurpose light helicopter
Manufacturer Bell Helicopter
Designed by Arthur M. Young
First flight 8 December 1945
Introduced 1946
Primary users United States Army
British Army
Produced 1946-1974
Number built 5,600
Developed from Bell Model 30
Variants H-13 Sioux
Bell 47J Ranger
Kawasaki KH-4

The Bell 47 is a two-bladed, single engine, light helicopter manufactured by Bell Helicopter. Based on the third Model 30 prototype, Bell's first helicopter designed by Arthur M. Young, the Bell 47 became the first helicopter certified for civilian use on 8 March 1946. More than 5,600 Bell 47 aircraft were produced, including aircraft produced under license by Agusta in Italy, Kawasaki Heavy Industries in Japan, and Westland Aircraft in the United Kingdom. The Bell 47J Ranger is modifed version with a fully enclosed cabin and fuselage.

Design and development

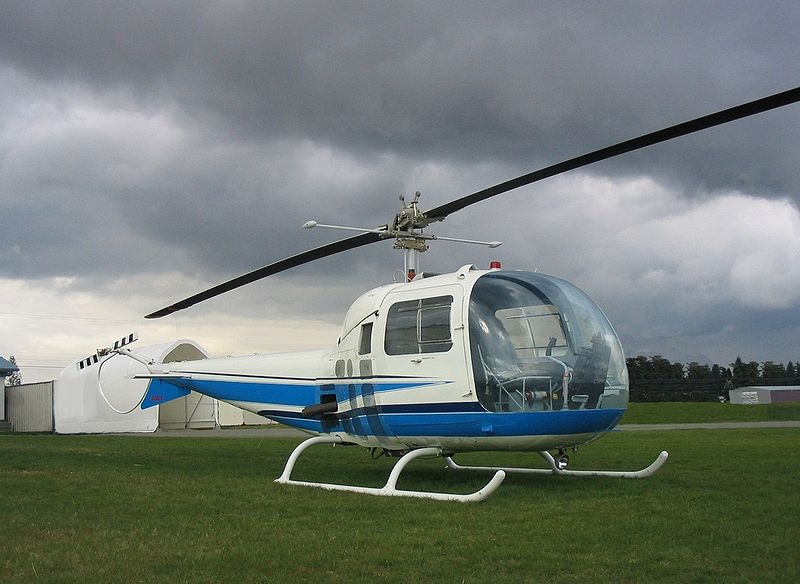

Bell 47J Ranger
Bell 47J Ranger

Early models were variable in appearance, with open cockpits or sheet metal cabins, fabric covered or open structures, some with four-wheel landing gear. Later model Ds and Korean War H-13D and Es types settled to a more utilitarian style. The most common model, the 47G introduced in 1953, can be recognized by the full bubble canopy, exposed welded-tube tail boom, saddle fuel tanks, and skid landing gear.

The later three-seat 47H had a enclosed cabin with full cowling and monocoque tail boom. It was an effort to market a "luxury" version of the basic 47G. Relatively few were produced.

Engines were Franklin or Lycoming horizontally-opposed piston engines of 200 to 305 HP (150 to 230 kW). Seating varied from two (early 47s and the later G-5A) to four (the J and KH-4). Many are still in use as trainers and in agriculture (as of 2005).

Bell 47s were produced in Japan by a Bell and Kawasaki venture; this led to the Kawasaki KH-4 variant, a four seat version of the Model 47 with a cabin similar to the Bell 47J. It differed fron the "J" in having a standard uncovered tailboom and fuel tanks like the G series. They were sold throughout Asia, and some were used in Australia.

Operational history

The Bell 47 helicopter entered U.S. military service in late 1946, in a variety of versions and designations for three decades. In the Korean War, it was designated the H-13 Sioux by the United States Army. It has also served as the helicopter of choice for basic helicopter flight instruction in many countries.

NASA had a number of Bell 47s during the Apollo program, used by astronauts as a trainer for the Lunar Lander. Eugene Cernan had a near disastrous accident shortly before his flight to the moon on Apollo 17 by crashing one into the Indian River.

The Los Angeles County Fire Department in California used the Bell 47 as the department's very first aircraft in 1957.

Records

  • 13 May 1949, a Bell 47 set an altitude record of 18,550 feet (5,650 m).
  • 21 September 1950, first helicopter to fly over the Alps.
  • 17 September 1952, Bell pilot Elton J. Smith set a world distance record of 1,217 mi (1,959 km), by flying nonstop from Hurst, Texas to Buffalo, New York.

Variants

Section source: Aviastar

Civilian

Bell 47
Pre-production version, powered by a 133-kW (178-hp) Franklin piston engine.
Bell 47A
Improved version of the Bell 47, powered by a 117-kW (157-hp) Franklin O-335-1 piston engine.
Bell 47B
Equivalent to the military YR-13/HTL-1, powered by the Franklin O-335-1 piston engine.
Bell 47B-3
Agricultural/utility version with open crew positions.
Bell 47C
Bell 47D
First to appear with a moulded 'goldfish bowl' canopy.
Bell 47D-1
Introduced in 1949, it had an open tubework tailboom reminiscent of the Bell Model 30, ship number 3, and a three-seat configuration.
Bell 47E
Powered by a 149-kW (200-hp) Franklin 6V4-200-C32 engine.
Bell 47F

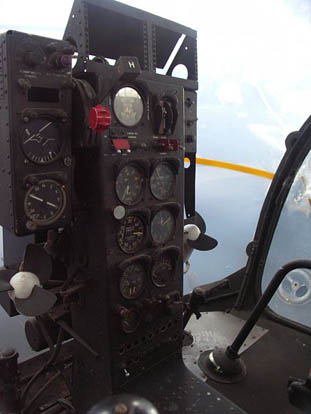

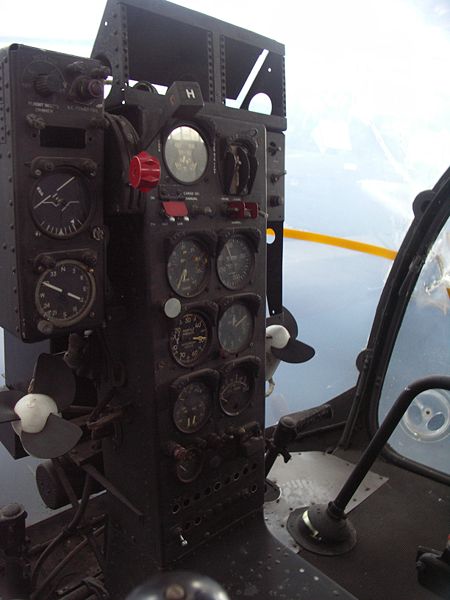

Instrument layout on the 47G
Instrument layout on the 47G
Bell 47G
Combines a 149 kW Franklin engine with the three-seat configuration of the 47D-1 and introduced the twin saddle-bag fuel tank configuration.
Bell 47G-2
Powered by the Lycoming VO-435 engine. Produced under license by Westland Aircraft as the Westland Sioux, for the UK military.
Bell 47G-2A
Powered by a 179 kW version of the VO-435.
Bell 47G-2A-1
Wider cabin, improved rotor blades and increased fuel capacity.
Bell 47G-3
Powered by a supercharged 168 kW Franklin 6VS-335-A.
Bell 47G-3B
Powered by a turbocharged 209 kW Avco Lycoming TVO-435.
Bell 47G-4
Three-seat helicopter powered by an Avco Lycoming VO-540 engine.
Bell 47G-5
A three-seat, utility version. A two-seat agricultural version was later known as the Ag-5. The 47G-5 was the last model to be produced by Bell.
Bell 47H-1
A three-seat version with an enclosed cabin and fuselage.
Bell 47J Ranger
A four-seat version powered by an Avco Lycoming VO-435 engine.

Military

See H-13 Sioux

Licenced versions


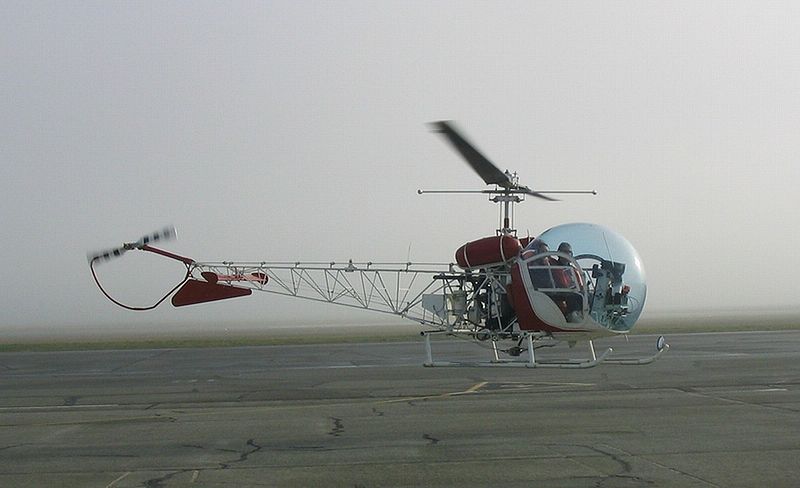

Agusta Bell 47G, built 1964, Italy.
Agusta Bell 47G, built 1964, Italy.
Agusta A.115
1971 Italian prototype of a Bell 47J with an unclad, tubular tail boom, and powered by a Turboméca Astazou II turboshaft engine
Meridionali/Agusta EMA 124
Italian prototype with redesigned forward fuselage. Not produced.
Kawasaki KH-4
Japanese production version with redesigned, lengthened cabin, and redesigned control system

Conversions

Carson Super C-4
El Tomcat Mk.II
Bell 47G-2 modified extensively for agricultural spraying by Continental Copters Inc. First flew in April 1959. Followed by further improved versions.

Operators

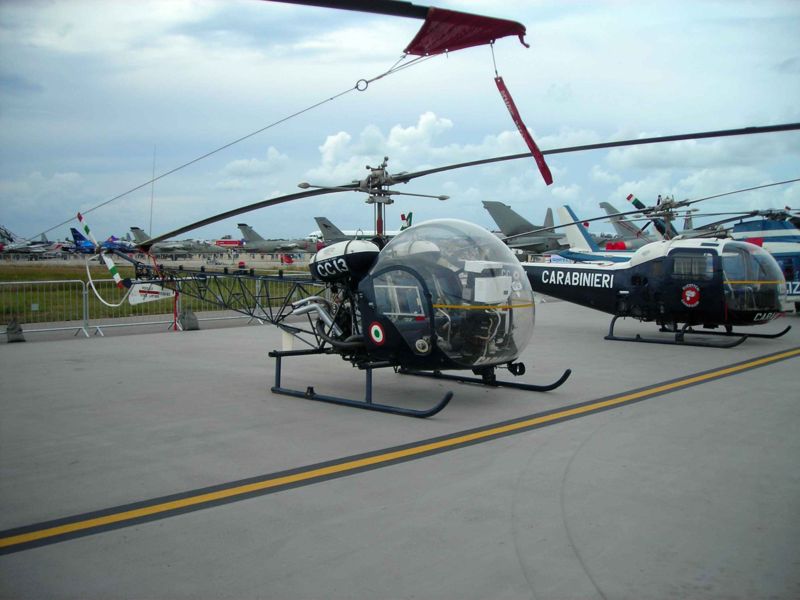

Agusta-Bell 47G (foreground) and Agusta-Bell AB.47J3 Ranger in Italian Carabinieri markings in 2006
Agusta-Bell 47G (foreground) and Agusta-Bell AB.47J3 Ranger in Italian Carabinieri markings in 2006

Government operators

 Italy}

Survivors

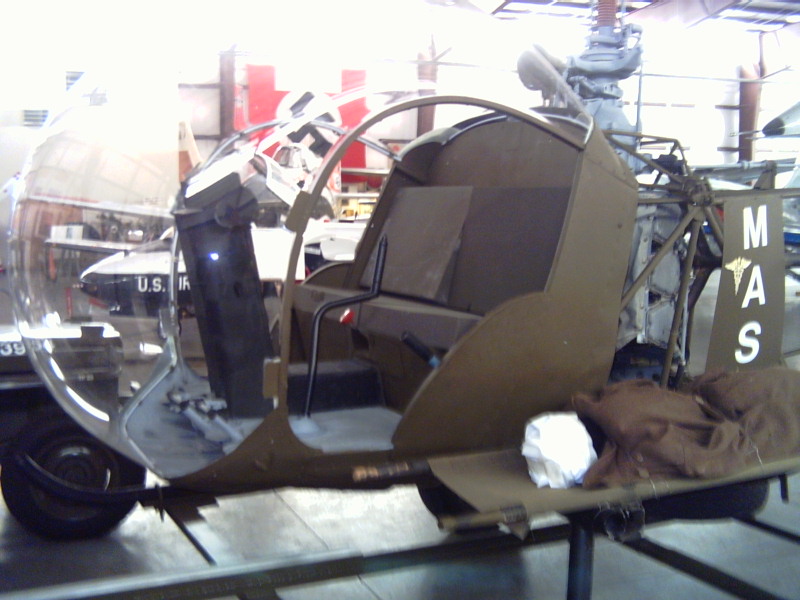

M*A*S*H H-13 at Pueblo Museum.
M*A*S*H H-13 at Pueblo Museum.

Specifications (Bell 47G-3B)

Data from International Directiory of Civil Aircraft

General characteristics

  • Crew: 1 or 2
  • Capacity: 1 passenger or 2 litters
  • Length: 31 ft 7 in (9.63 m)
  • Rotor diameter: 37 ft 2 in (11.32 m)
  • Height: 9 ft 3 in (2.83 m)
  • Disc area: 1,085 sq ft (100.8 m²)
  • Empty weight: 1,893 lb (858 kg)
  • Useful load: 1,057 lb (482 kg)
  • Max takeoff weight: 2,950 lb (1,340 kg)
  • Powerplant:Lycoming TVO-435-F1A flat, six-cylinder, reciprocating engine, 280 hp (210 kW)

Performance

Popular culture

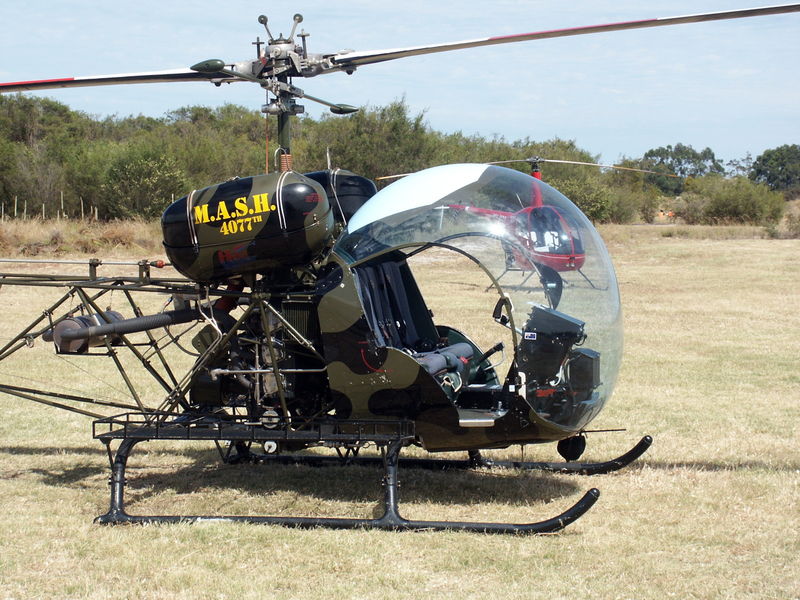

Bell 47G in M*A*S*H paint scheme.
Bell 47G in M*A*S*H paint scheme.

The Bell 47 appeared, and played key roles, in film and television productions. It has been associated with both the M*A*S*H film, and the M*A*S*H television series, and the Whirlybirds TV series (1957–1959).

See also

Related development

Comparable aircraft

Related lists

Bibliography

External links
