Avro Canada C102 Jetliner

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Avro_Canada_Jetliner

C102 Jetliner
Model of an Avro Canada C102
Role jet airliner
Manufacturer Avro Canada
Designed by James C. Floyd
First flight 10 August 1949
Introduced prototype only
Primary user Trans Canada Airlines (intended)
Number built one (second prototype cancelled while in production, and scrapped)

The Avro C102 Jetliner was a Canadian prototype medium-range jet airliner built by Avro Canada in 1949. It was beaten into the air by only 13 days by the de Havilland Comet, thereby becoming the second jet airliner in the world, yet the name "Jetliner" was more catchy and for many years all such aircraft were colloquially given that name. The aircraft was considered suitable for busy routes along the US eastern seaboard and garnered intense interest, notably from Howard Hughes who even offered to start production under license. However continued delays in Avro's all-weather interceptor project, the Avro CF-100, led to an order to stop working on the project in 1951, with the prototype Jetliner later cut up for scrap.

History

Genesis

In 1945 Trans-Canada Airlines (TCA) started exploring a number of aircraft developments under the direction of Jim Bain. A. V. Roe of England had recently taken over the Victory Aircraft "shadow factory" in Toronto, and starting exploring production possibilities with TCA for a two-engine turboprop aircraft like the Vickers Viscount. In the fall of 1945, Bain travelled to England to visit various aircraft companies, and during his exploration of Rolls-Royce's engine department, saw the early work on what was then known as the AJ65. Later known as the Rolls-Royce Avon, the new engine, Bain was enthralled and on his return he changed plans for Avro's development to use the new engine instead of turboprops.

Over the next few months, the teams at TCA and Avro refined the requirements, which were signed off on 9 April 1946. They called for a 36-seat aircraft with a cruising speed of 425 miles per hour (684 km/h), a range of 1,200 miles (1,900 km), an average distance between stops of 250 miles (400 km) and longest single flight of 500 miles (800 km). The difference between the range and maximum airport distances was to allow for the required 45 minutes stacking and flight to get to a 120 mile (190 km) distant alternate airport in a 20 mph (30 km/h) headwind. The aircraft also needed to be able to operate from existing 4,000 ft (1,200 m) runways. Load was 12,700 lbs and 50 passengers.

The agreement also specified a number of contractual terms that, in retrospect, appear especially odd. In spite of TCA's experience with contracting for the Ministry of Transport, and Bain's personal arguments that cost-plus contracts be used as a ward against budget overruns, TCA's contract with Avro demanded fixed prices for the entire development, as well as a fixed price for the aircraft of $350,000. Additionally, Avro was not allowed to sell the aircraft to any other airline for three years. After that period, if a buyer paid less than $350,000 for the aircraft, Avro would have to pay the difference to TCA. Furthermore, during the testing period of one year after the first aircraft was introduced, Avro would have to pay all costs, even if paying passengers were carried. Jack Dyment, chief of TCA's entire engineering department, suggested that Avro pay for the testing so that it would "permit us to learn how to successfully operate a jet aircraft without having to pay for such experience the hard way."

Design changes

In 1947, Fred Smye, president of Avro, advised Herbert James Symington of TCA that they could not meet the fixed price contract. Symington's response was to pull out of the project, perhaps due to having successfully taken delivery of their new Canadair North Stars. C. D. Howe stepped in and offered $1.5 million to continue the project, at a slower pace. At about the same time, Rolls-Royce told Avro that the civil certification of the Avon could not be guaranteed in time for the Jetliner's rollout. This, in turn, led to TCA pulling out of the program due to the increased maintenance costs, leaving it without an initial customer. Nevertheless, Avro continued with its plan to build the jet, selecting Rolls-Royce Derwents to replace the Avons.

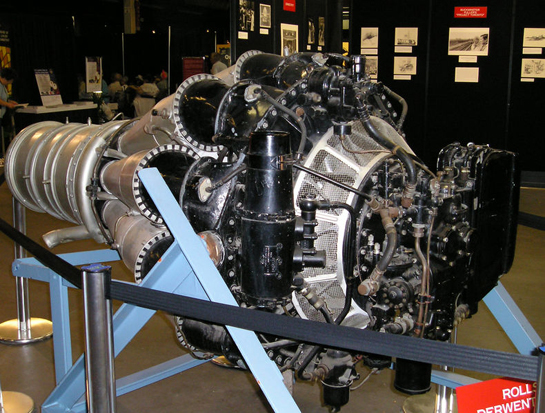

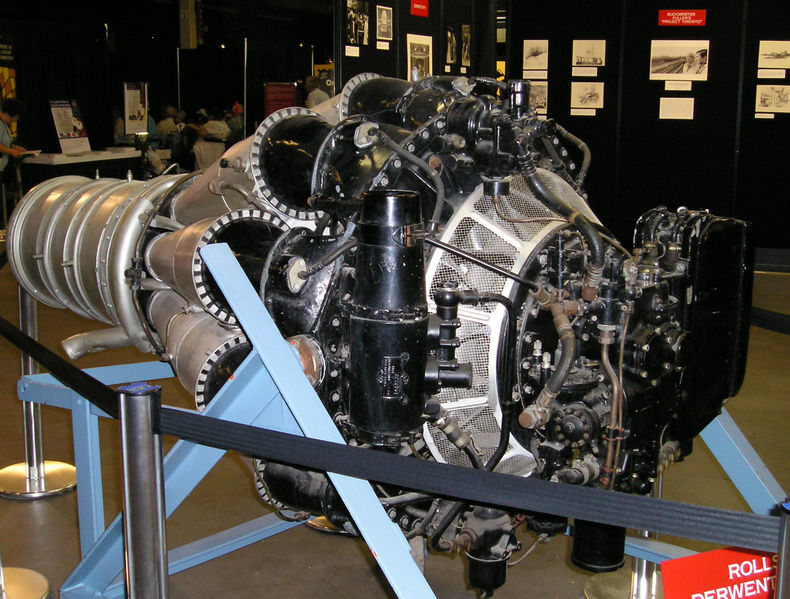

Rolls-Royce Derwent Engine, used in the Avro Jetliner
Rolls-Royce Derwent Engine, used in the Avro Jetliner

Chief Designer James C. Floyd was upset by these developments, but in the end found a number of advantages of the four-engine layout. The main advantage was that an engine-out situation, the aircraft would lose only 1/4 of its thrust, rather than 1/2, which made tolerances on the design easier to meet. In particular, the asymmetry in thrust originally called for a powered rudder to correct for yaw in the case of an engine-out, but with four engines it was found that the yaw was so small it could be correctly easily with just the manual trim controls. Although bearing some resemblance to the Avro Tudor 8 and 9 (which spawned the experimental Avro Ashton); from the outset, Floyd's design was conceived as a commercial jet airliner.

The updated design was presented in October 1948, and in February 1948 TCA responded with changes of their own. Now they wanted the aircraft to cruise at 500 mph, and they increased the fuel requirements to allow for wider diversions. In April, Gordon McGregor took over the presidency of TCA, and told Smye that he did not want to be the first airline with a jet. Nevertheless, the project pressed on, and was the topic of a major article in Aviation Week that November.

Testing

Two years later, the first prototype, CF-EJD (-X), began taxiing tests, and first flew 10 August 1949, only 25 months after the design had started, and only 13 days after the first flight of the DH Comet. A delay caused by runway construction at the company's home Malton airport combined with repairs necessitated by external nacelle skin "buckling" prevented the Jetliner from being the first jet-powered airliner to fly.On its second flight, on 16 August, the landing gear failed to extend, and the Jetliner had to make a belly-landing. However, the damage was minor, and the aircraft was in the air again in three weeks.

In April 1950, the Jetliner carried the world's first jet airmail from Toronto to New York in 58 minutes– half the previous record (c.340 miles, 352mph). The flight was highly publicized and the crew was welcomed with a ticker tape parade through the streets of Manhattan. So new was the concept of jet power that the Jetliner was made to park far from the terminal, and pans were placed under the engines in case they dripped any "self-igniting fuel." The Jetliner suffered a mysterious "cracking" sound on the trip and was forced to stay on, as the pilots refused to fly it back. This delay allowed it to be presented to a number of potential customers, where it was competing against considerably slower designs like the DC-6 and war-surplus DC-3s. On its return, (on the back of a train), the "cracking" problem was traced to the spar area around the engines, which was made much stronger. It was later learned the problem was actually too-close tolerances between the engine nacelle and the spar, simply making a looser fit would have had the same effect.

At the time, in the mid-1950s, the Cold War was starting and the Canadian authorities were in the midst of expanding the military. Avro was involved in designing the first dedicated jet-powered, all-weather fighter for the RCAF, the Avro CF-100 Canuck. The project was somewhat delayed, although the company's continuing work on the Jetliner caused some controversy. After the prototype returned, it still had no immediate sales prospects, therefore C.D. Howe, (the "minister of everything"), ordered the program stopped in December 1951. The second prototype Jetliner, well on its way in the main assembly hangar, was broken up at that time.

Nevertheless, only a few months later, the enigmatic Howard Hughes first learned of the design and leased the Jetliner prototype for testing, flying it for a few circuits when it arrived in Culver City, California. He became a believer, imagining TWA and National delivering passengers from New York to vacation spots in Florida in half the time of the competition. He became desperate to buy 30 Jetliners, but Avro had to repeatedly turn him down due to limited manufacturing capabilities and overwork on the CF-100 project. Hughes then started looking at US companies to build it for them; Convair proved interested and started studies on gearing up a production line. C.D. Howe again stepped in and insisted that Avro concentrate on its Orenda turbojet and CF-100 jet fighter programs.

The project was almost restarted in 1953, when CF-100 production was in full swing, but this never happened. In 1955, TCA ordered 51 Vickers Viscount turboprop aircraft from Vickers-Armstrong in England. These were the first turbine-powered aircraft in regular service in North America. They continued in service until 1974.

Cancellation

The Jetliner was later used as the aerial photo platform for the CF-100 project. On 10 December 1956, the Jetliner was ordered surplused, and although it was donated to the National Research Council, they had no room for it in storage and took only the nose section for cockpit layout design. The rest of the Jetliner was cut up on 13 December 1956. The only surviving parts are the nose and cockpit section in the Canada Aviation Museum in Ottawa.

Specifications Avro C102 Jetliner

General characteristics

  • Length: 82 ft 5 in (25.1 m)
  • Wingspan: 98 ft (29.9 m)
  • Height: 26 ft 5 1/2 in (8.1 m)
  • Empty weight: 37,000 lb (16,783 kg)
  • Max takeoff weight: 65,000 lb (29,484 kg)
  • Powerplant:Rolls-Royce Derwent 5/17 turbojet, 3,600 lbf (16 kN) each

Performance
