Avro Avian

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Avro_Avian

Avian
Bert Hinkler's Avro Avian displayed at the Queensland Museum in Brisbane, Australia
Role Tourer/Trainer
Manufacturer Avro
Designed by Roy Chadwick [1]
First flight 1926
Introduced 1927
Primary users Royal Canadian Air Force
South African Air Force
Chinese Naval Air Service
Estonian Air Force
Produced 1926-1928
Number built 405

The Avro Avian was a series of British light aircraft designed and built by Avro in the 1920s and '30s. While the various versions of the Avian were sound aircraft, they were comprehensively outsold by the de Havilland Moth and its descendants.

Design and development

The Avro 581 Avian prototype was designed and built to compete in the Daily Mail light aeroplane trials at Lympne in September 1926. Its wooden fuselage was based on that of the Avro 576 autogyro, but it was fitted with conventional biplane wings and powered by a 70 hp (50 kW) Armstrong Siddeley Genet engine . After these trials, where it was eliminated due to engine failure, it was re-engined with an 85 hp (63 kW) ADC Cirrus engine and sold (as the Avro 581E) to Bert Hinkler, who used it for a series of long-distance flights, culminating in a 15½-day solo flight from Croydon, UK to Darwin, Australia .

Production aircraft were designated Type 594 and were built in a number of versions, mainly powered by Cirrus engines. A version with a welded steel tube fuselage was produced in 1929 as the Avro 616 Avian IVM to meet overseas requirements for an easier-to-repair structure. This version was built in the largest numbers, with approximately 190 built .

Operational history

While outsold by the de Havilland Moth and its derivatives, which first flew more than a year earlier than the Avain, the Avian was used extensively as a civil tourer or trainer, with many being sold overseas, Avians being built (or assembed) by the Whittesley Manufacturing Co., Bridgeport, Connecticut, USA, and the Ottawa Car Manufacturing Co., Canada, as well as by Avro itself .

Avro Avian 594 Avian III, SN: R3/AV/101, was owned by Lady Mary Heath and Amelia Earhart. The Avian Amelia flew had an 84 hp (63 kW) Cirrus Mk II engine. It was originally registered to Lady Heath on 29 October 1927 and given the UK aircraft marking G-EBUG. When Amelia brought it to the United States it was assigned “unlicensed aircraft identification mark” 7083; aircraft not officially certificated in the United States were allowed to be flown as unlicensed but identified aircraft. Avian 7083 was used on Earhart's first long solo flight, which occurred just as Amelia was coming into the national spotlight. By making the trip in August 1928, she became the first woman to fly solo across the North American continent and back.

A single Genet-powered Avian II was bought by the Royal Air Force, while Avians were also bought by the South African Air Force, the Chinese Naval Air Service, the Estonian Air Force and the Royal Canadian Air Force.

Variants

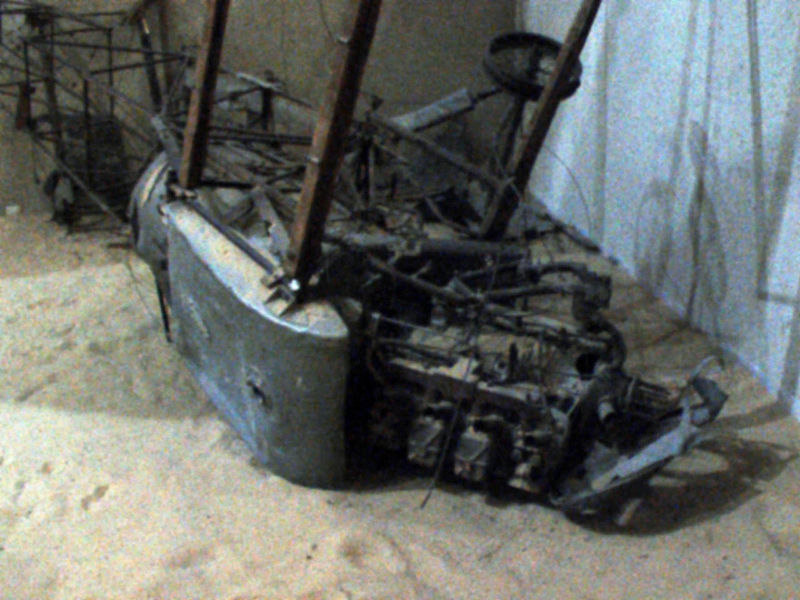

The wreckage of the Southern Cross Minor recovered from the Sahara Desert and displayed at the Queensland Museum
The wreckage of the Southern Cross Minor recovered from the Sahara Desert and displayed at the Queensland Museum
Avro 581 Avian
First prototype, one 75 hp (56 kW) Armstrong Siddeley Genet.
Avro 581A
Modified first prototype, one 80 hp (60 kW) ADC Cirrus.
Avro 581E
Further modified Avro 581A for long distance flights, with new wings and modified fuselage.
Avro 594 Avian I
Pre production aircraft, two built.
Avro 594 Avian II
Initial production, 85 hp (63 kW) Cirrus II engine, nine built.
Avro 594 Avian III
Modified engine mount and tubular steel struts, 33 built.
Avro 594 Avian IIIA
95 hp (71 kW) Cirrus III engine, 58 built.
Avro 594 Avian IV
Revised undercarriage and ailerons, 90 built.
Avro 605 Avian
Two Avro 594 Avian IIIs were converted into floatplanes.
Avro 616 Avian IVM
Steel tube fuselage. Powered by 105 hp (78 kW) Cirrus Hermes I or 100 hp (75 kW) Armstrong Siddeley Genet Major, approximately 190 built.
Avro 616 Sports Avian
Version for racing with reduced drag, 16 built.
Avro 616 Avian IVA
modified one off long range version for Charles Kingsford Smith, Southern Cross Junior, 120 hp (90 kW) de Havilland Gipsy II engine, with additional fuel tank and revised wings.
Avro 616 Avian V
Long range single seater again built for Charles Kingsford Smith, Southern Cross Minor. Bill Lancaster would later attempt to fly solo from England to South Africa in this aircraft, and die in the attempt.
Avro 625 Avian Monoplane
Low wing monoplane development, two built.

Operators

Military Operators

 Canada

Royal Canadian Air Force

 China

Chinese Naval Air Service

 Estonia

Estonian Air Force

 South Africa

South African Air Force

 United Kingdom

Royal Air Force

Specifications (Avian IVM)

Data from British Civil Aircraft since 1919 Volume 1

General characteristics

  • Crew: Two
  • Length: 24 ft 3 in (7.39 m)
  • Wingspan: 28 ft 0 in (8.54 m)
  • Height: 8 ft 6 in (2.59 m)
  • Wing area: 245 ft² (22.8 m²)
  • Empty weight: 1,005 lb (457 kg)
  • Loaded weight: 1,523 lb (692 kg)
  • Powerplant: 1× A.D.C Cirrus Hermes I inline piston engine, 105 hp (78 kW)

Performance

See also

  • Wop May 'the race against death' - mercy flight in an Avian

Comparable aircraft

External links
