Pitts Special

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Aviat_Pitts_Special

Pitts Special
Pitts S-1S
Role Aerobatic biplane
National origin United States
Manufacturer Aviat (current)
Designed by Curtis Pitts
First flight September 1944

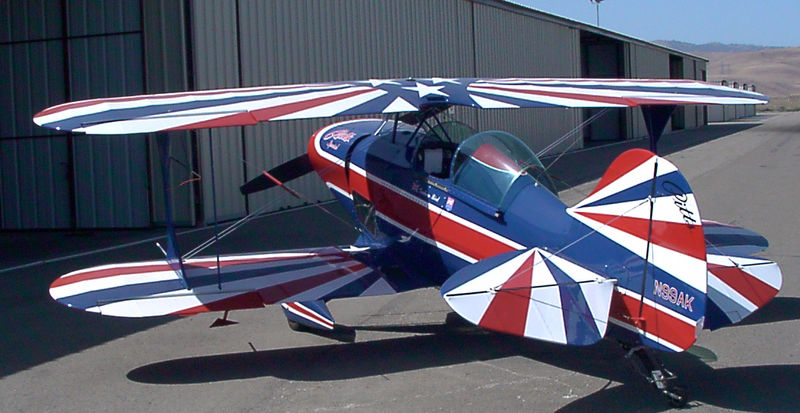

S-1S
S-1S

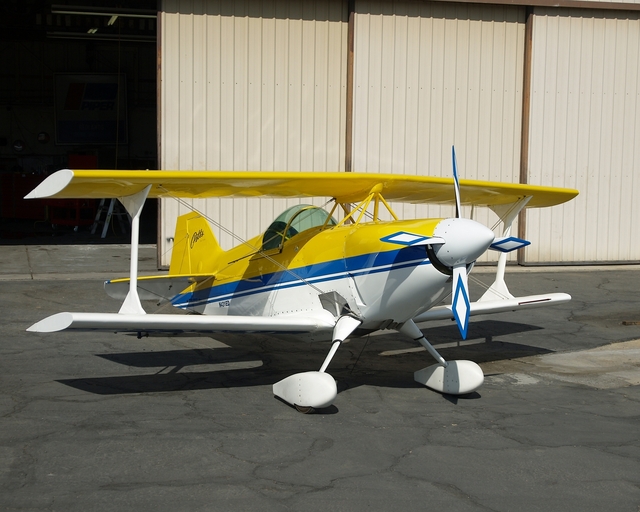

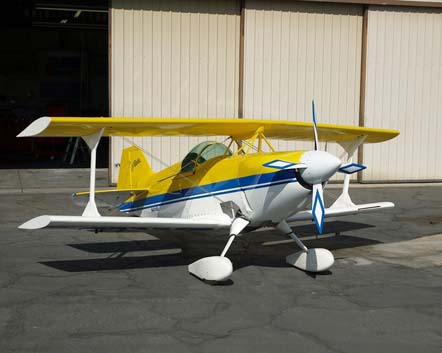

Modified S-1S
Modified S-1S

Modified S-1S
Modified S-1S

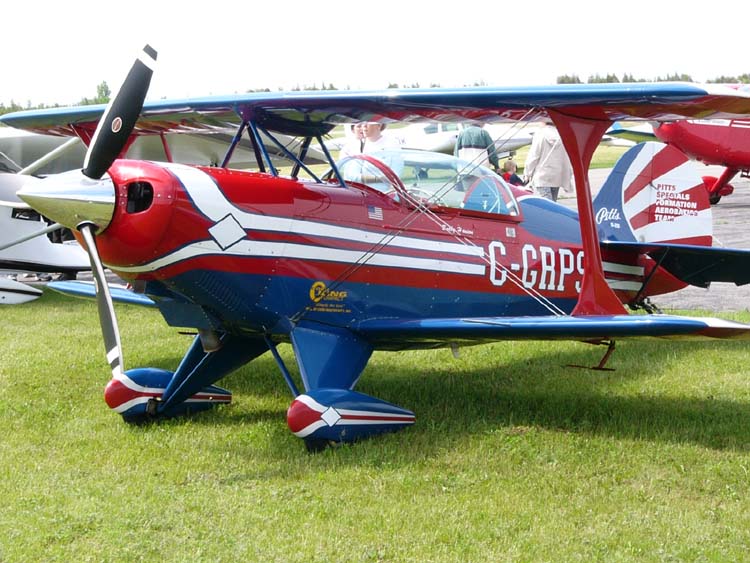

Christen Industries S-2B Pitts Special belonging to the Pitts Specials Formation Aerobatic Team
Christen Industries S-2B Pitts Special belonging to the Pitts Specials Formation Aerobatic Team

2001 Aviat Pitts S-2C
2001 Aviat Pitts S-2C

S1-11b Pitts Special
S1-11b Pitts Special

Pitts S-2A
Pitts S-2A

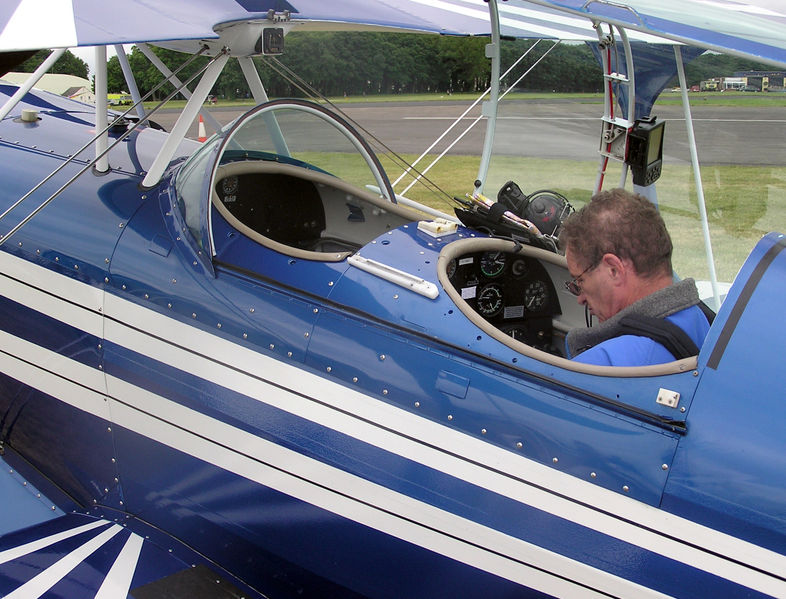

Cockpit of Pitts S-2A
Cockpit of Pitts S-2A

Pitts S-2B
Pitts S-2B

Pitts S-1E
Pitts S-1E

Pitts S-1T
Pitts S-1T

The Pitts Special is a light aerobatic biplane designed by Curtis Pitts. It has accumulated many competition wins since its first flight in 1944. The Pitts Special dominated world aerobatic competition in the 1960s and 1970s and, even today, remains a potent competition aircraft in the lower categories.

Design and development

Curtis Pitts began the design of a single-seat aerobatic biplane in 1943–1944. The design has been refined continuously since the prototype's first flight in September 1944, however, the current Pitts Specials still remain quite close to the original in concept and in design.

Pitts also built several monoplane racing planes in the 1940s–1950s, the most famous of which was the low-winged "Pellet" of 1947 and the mid-winged "Lil' Monster" of 1951. Among other one-off projects, he also built a two-seat sport monoplane called the "Big Hickey".

Several of the aircraft that Curtis Pitts built had a picture of a skunk on them and were called "Stinkers". After she bought it, aerobatic performer Betty Skelton called the second aircraft that Curtis built, "Lil' Stinker". The prototype S-2, which was the first two-seat Pitts, was "Big Stinker", the prototype Model 11 (later called S1-11B) was "Super Stinker", and the prototype Model 12 was the "Macho Stinker".

In 1962 Curtis Pitts set up Pitts Enterprises to sell plans of the S-1C to homebuilders.

Operational history

All single-seat (S-1) and two-seat (S-2) Pitts Specials are variations on the basic design from 1944.

The aircraft was popularized by Betty Skelton, Caro Bayley and other air show performers, which lead to the offering of plans around 1960.

Pitts produced limited numbers of aircraft during the 1940s and 1950s. It is widely accepted that the Pitts Special is the standard by which all other aerobatic aircraft are judged. After a number of home-built aircraft were produced from rough hand-drawn plans produced by Pitts, more professionally drawn plans went on sale in 1962. While many home-built aircraft were built in the 1960s, earning the Special a reputation as an excellent aerobatic aircraft, Pitts worked on the design of a two-seat aerobatic trainer version, the S-2, which first flew in 1967 and gained its type certificate in 1971. Factory-built aircraft produced by the Aerotek company at Afton, Wyoming were joined in production by the single-seat S-1S in 1973.

In 1972, the US National Aerobatic Team won the World Championships flying only Pitts Specials.

In 1977 Curtis Pitts sold his interests in the Pitts Special to Doyle Child. Child later sold the rights in 1981 to Frank Christenson, who continued production at the Afton plant under the guise of Christen Industries. The rights for home-built versions of the Pitts were sold in 1994 to Steen Aero Lab in 1994, with the Afton factory and production rights being transferred to Aviat.

Curtis Pitts died in 2005 at age 89. At the time of his death, he was working with Steen on the prototype of the new Pitts Model 14, a brand-new, two-seat biplane designed for unlimited aerobatics powered by the 400 horsepower Vedeneyev M14P radial engine. The rights to the Pitts name is currently owned by Aviat which also owns the similar model to the Pitts in the Christen Eagle.

Current versions

Certified versions of the compact Pitts Special are now produced by Aviat in Afton, Wyoming. It is available as an S1 single-seater with up to 200 hp (150 kW) flat-4 Lycoming engine and a 17 ft 4 in (5.28 m) wingspan, or as an S2 two-seater variant featuring a 260 hp (194 kW) flat-6 Lycoming and a 20 ft (6.1 m) wingspan. Pitts Specials have been equipped with engines of up to 450 hp (338 kW).

The Pitts Special held sway over the aerobatic world championships until the rise of the monoplane, though it remains very competitive in all levels of competition and remains a favorite of air show performers worldwide. The first monoplane to topple the Pitts from the top of unlimited aerobatic competition was the Russian- built and designed Yak-50.

Today, the single-seat Pitts Special S1-S plans are available from Aviat Aircraft. The S1-C and derivative S1-SS plans and kits are supplied by Steen Aero Lab in Palm Bay, Florida. The S1 continues to provide extremely high performance at a relatively low cost. Many hundreds of homebuilders have successfully completed and flown the Pitts since plans became available in 1960.

Variants

S-1
Basic single-seat Pitts Special with a flat M6 aerofoil section and lower wing ailerons only, fitted with a variety of engines.
S-1C
Amateur-built S-1 single-seat aircraft, flat bottom wing with ailerons on lower wing only, designed for 100–180 hp (75–134 kW) engines. First flown in 1960, the S-1 is currently available as a plans-built aircraft from Steen Aero Lab.
S-1D
Amateur-built S-1C with ailerons on all four wings, generally similar to S-1S.
S-1E
Amateur-built S-1C using factory-produced kits. Uses symmetrical airfoil.
S-1F
Outside derivative homebuilt, with the Falcon wing. Square tips, 25% more aileron span. In the UK, this model is fitted with a 200 hp (149 kW) Monty Barrett engine, and a lightweight Hoffmann VP propeller.
S-1S
Aerotek-built certified S-1C for competition aerobatics, round aerofoil section, four ailerons and powered by a 180 hp (134 kW) Lycoming AEIO-360-B4A; 61 built. This model is also available from Aviat Aircraft as a plans-built aircraft.
S1-SS
Similar to the certified S1-S "Roundwing". 180–200+ hp (134–149 kW), single-seat, homebuilt, symmetrical wing, four symmetrical "Super-Stinker" style ailerons, 300 degree/s roll rate, fixed pitch propeller. This model is available in plans and components form from Steen Aero Lab.
S-1T
Aerotek-built S-1C with a 200 hp (149 kW) Lycoming AEIO-360-A1E and minor changes; 64 built. Four-aileron, single-seat, factory-built, symmetrical wing, constant speed two- or three-blade Hartzell propeller. This model is in production in 2008 from Aviat Aircraft as an "on-demand" manufacture product.
S-1-11B
Known as Model 11 "Super Stinker", 300+ hp (220 kW) Lycoming, four-aileron, single-seat, experimental-plans or factory-built and factory component parts, symmetric airfoil, three-blade constant speed prop, rolls better than 300 degree/s, climbs better than 3,000 ft/min (15.3 m/s).
S-2
Scaled up S-1 with tandem two-seat fuselage and powered by a 200 hp (149 kW) Lycoming AEIO-360-B4A piston engine.
S-2A
Aerotek-built S-2A with a 200 hp (149 kW) Lycoming AEIO-360-A1A or -A1E piston engine, constant speed propeller, later builds has a longer landing gear and a two-inch wider front cockpit; 259 built.
S-2B
Aerotek-built S-2A with a 260 hp (194 kW) Lycoming AEIO-540-D4A5 engine, and upper wing auxiliary fuel tank, the landing gear and upper wings were moved forward six inches; 196 built. The aircraft is out of production but is supported by Aviat Aircraft.
S-2C
Four aileron, two-seat, factory-built, symmetric airfoil, 260 hp (194 kW) Lycoming driving constant speed three-blade propeller, current production model. This was a modification of the S-2B model, with improved ailerons and rudder. It is in production in 2008 by Aviat Aircraft.
S-2E
Amateur-built S-2A from factory-produced kits.
S-2S
Aerotek-built S-2B with a single cockpit and a twin tank fuel system. The fuselage is shortened by 14 inches (35 cm) forward of the cockpit to allow the installation of the heavier 260 hp (194 kW) Lycoming AEIO-540-D4A5. The wingspan is 20 ft, 0 inches (6.10 m); 17 built. This model is currently out of production, but supported by Aviat Aircraft.
S-2SE
Amateur-built S-2S from factory-produced kits.
Model 12
Vedeneyev M14P 360–400 hp (270–300 kW) Russian radial engine, two- or three-blade MT propeller, plans built or kit built, component parts available. This was the last design completed and flown by Curtis Pitts. Kits are distributed by Jim Kimball Enterprises.
Model 13
A "coupe" type monoplane design. It was never built.
Model 14
Two-seat Vedeneyev M14P 360 hp (270 kW) radial-powered aircraft distributed in plans built form by Mid America Aircraft.
Model 15
Reported as a light sport type monoplane aircraft being developed by Steen Aero Lab.

Modifications

Samson
The "Big Pitts", it had a 450hp Pratt & Whitney R-985, originally designed for Jess Bristow and was used as an airshow airplane.

Military Operators

 Chile
 Jordan
 Venezuela

Civil operators

Specifications (S-2B)

Data from Jane's All the World's Aircraft 1988-89

General characteristics

  • Crew: Two
  • Length: 18 ft 9 in (5.71 m)
  • Wingspan: 20 ft 0 in (6.10 m)
  • Height: 6 ft 7⅓ in (2.02 m)
  • Wing area: 125 ft² (11.6 m²)
  • Empty weight: 1,150 lb (521 kg)
  • Max takeoff weight: 1,625 lb (737 kg)
  • Powerplant:Textron Lycoming AEIO-540-D4A5 flat-six air cooled piston engine, 260 hp (194 kW)

Performance
