Auster Aiglet Trainer

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Auster_Aiglet_Trainer

J/5 Aiglet Trainer
Role Aerobatic trainer/tourer
Manufacturer Auster Aircraft Limited
First flight 1951
Primary users private pilot owners
Pakistan Air Force
Produced 1951-1958
Number built 77
Developed from Auster J/5 Autocar
Variants Auster J/5R Alpine

The Auster J/5 Aiglet Trainer was a 1950s British single-engined four-seat high-wing training and touring monoplane built by Auster Aircraft Limited at Rearsby, Leicestershire.

History

Despite its name, the aircraft type had nothing to do with the Auster J/1B Aiglet, it being an aerobatic development of the Auster J/5 Autocar.

The Aiglet Trainer was based on the J/5 fuselage with new wings and stressed for aerobatics. The prototype first flew in 2 June 1951.

Most Aiglet Trainers were bought by private pilots and flying clubs, but 15 went to the Pakistan Air Force, 14 to the Iran Civil Aviation Club and two to the Lebanese Air Force.

Variants

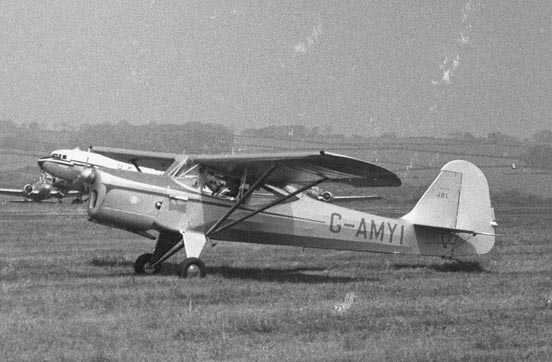

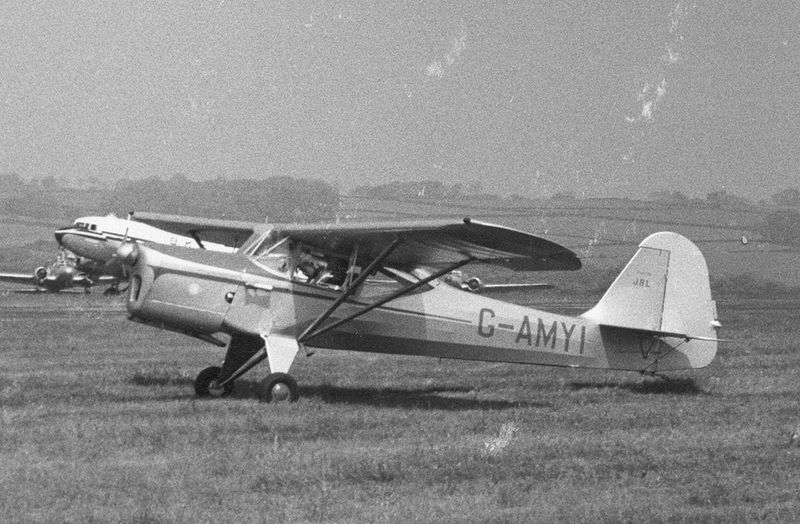

The sole J/8L Aiglet Trainer had an enlarged fin and rudder. Leeds (Yeadon) Airport May 1955
The sole J/8L Aiglet Trainer had an enlarged fin and rudder. Leeds (Yeadon) Airport May 1955

Operators

 Pakistan

Specifications (J/5F)

General characteristics

  • Crew: 3
  • Length: 23 ft 6 in (7.16 m)
  • Wingspan: 32 ft 0 in (9.75 m)
  • Height: 6 ft 6 in (1.98 m)
  • Wing area: 164 ft² (15.24 m²)
  • Empty weight: 1,323 lb (600 kg)
  • Max takeoff weight: 1,950 lb (885 kg)
  • Powerplant:de Havilland Gipsy Major 1 inline piston, 130 hp (112 kW)

Performance

Notes
Bibliography

External links

See also
