Sukhoi Superjet 100

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Sukhoi_Superjet_100

Superjet 100

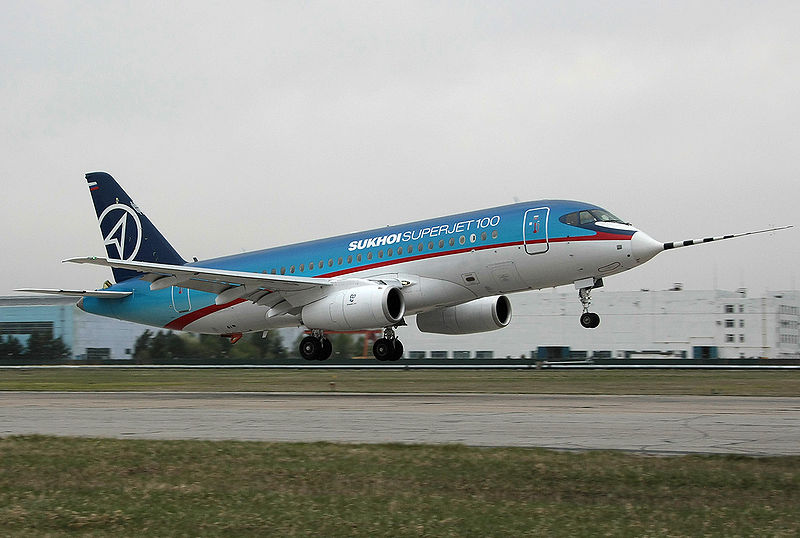

The Superjet 100 prototype on a test flight at Komsomolsk-on-Amur.
Role Regional airliner
Manufacturer Komsomolsk-on-Amur Aircraft Production Association
Designed by Sukhoi Civil Aircraft
First flight 19 May 2008[1]
Introduction 2009
Status Under development
Primary user Aeroflot
Produced 2007 - present
Number built 4
Unit cost US$27.8 mil (2007)[2]

The Sukhoi Superjet 100 is a modern, fly-by-wire regional jet in the 75- to 95-seat category. The Superjet 100 will be produced by Russian aerospace firm Sukhoi's civil division, of which Finmeccanica of Italy owns 25%. The jet is being developed in collaboration with Finmeccanica subsidiary Alenia Aeronautica. Italian design group Pininfarina will design optional interiors.

Design

The Sukhoi Superjet 100 is designed to compete against the Embraer E-Jets and the Bombardier CSeries programs. Sukhoi claims the SSJ will have 10-15% lower operation costs than its Embraer or Bombardier counterparts for the price of $27.8 million

The three variants were originally called the RRJ-60, RRJ-75 and RRJ-95, with the numbers designating the average passenger capacity of each type. However, with the renaming of the project to Superjet 100, the RRJ-75 was relabelled the Superjet 100-75 (or SSJ 100-75 for short), while the RRJ-95 became known as the SSJ 100-95. The smallest variant, called the SSJ 100-60, was temporary postponed, and efforts are currently concentrating on the largest variant, with the smaller SSJ 100-75 to follow later on. Longer variants, called the SSJ 100-110 and the SSJ 100-125, are also planned as well as business, VIP and cargo variants.

The PowerJet SaM146 engine are developed by PowerJet. The noise and emissions levels surpass the existing ICAO requirements.

  • Risk-sharing partner: Snecma

The design meets the specific requirements of airlines in Russia, the CIS, and western countries, and conforms to the Aviation Rules AP-25, FAR-25, JAR-25 requirements, and to the ground noise level requirements under ICAO Chapter 4 and FAR 36 Section 4 standards entering into force during 2006.

Development and delivery schedule

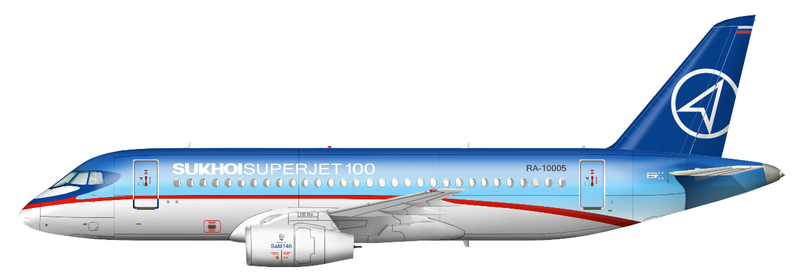

Sukhoi Superjet 100-95 in corporate livery.
Sukhoi Superjet 100-95 in corporate livery.

The deliveries were scheduled to begin in late 2008, and Sukhoi predicted that 163 units of all variations of the Superjet 100 would be delivered by the end of 2016. On July 7, 2008, Sukhoi officially confirmed that the original schedule was too optimistic, and first deliveries are to be started in the third quarter of 2009.

On 28 January 2007, the first SSJ was transported by an Antonov 124 from Komsomolsk-on-Amur to the city of Zhukovsky near Moscow for ground tests at Zhukovsky Central Aerohydrodynamic Institute. A representative of Sukhoi Civil Aircraft announced on 13 November 2007, the completion of static tests necessary for conducting the first flight.

In the middle of February 2008, the SaM146 initial engine runs went successfully, gearing up for the maiden flight, which was conducted at the Komsomolsk-on-Amur Aircraft Production Association on 19 May 2008. The engine test followed a test on an Ilyushin Il-76, a testbed aircraft for the Gromov Flight Research Institute. It is expected to be certified and flying by November.

The jet was unveiled at its official rollout at Dzemgi Airport, Komsomolsk-on-Amur on 26 September 2007. The first test flight took place on 19 May 2008 also at the Dzemgi airport.The first Superjet spent 1 hour 5 minutes in the air, and reached altitude of 1,200 meters.

July 2008, testing continued successfully.

October 2008, the first stage of Sukhoi Superjet 100’s factory-based flight testing program is successfully completed. The second SSJ100 prototype has been powered on. Certification process started.

In December 2008, the second of four SSJ100 prototypes SN95003 took to the skies.The airplane performed traditional stability and handling quality as well as systems’ checks in accordance with the first flight assignment. Flight test engineers and pilots were pleased with the overall performance of the second prototype.

As of January 2009 first two aircraft have completed over 90 flights, totaling 300 hours, engines have accumulated around 2300 hours in flight and ground tests.

On April 1, 2009 two Superjet-100 airplanes, 95001 and 95003, successfully completed the first long-distance flight for this aircraft, covering distance of 3,000 kilometers from Novosibirsk to Moscow.

On April 17, 2009 EASA pilots have performed the first familiarization flights on two Sukhoi Superjet 100 airplanes, S/N 95001 and 95003. According to EASA pilot feedback, the aircraft was easy to fly and comfortable to the pilot.

Malev Hungarian Airlines said at Paris Air Show 2009 that it would purchase 30 Superjets worth $1 billion, providing a welcome boost to the aircraft as it made its international debut at the Paris Air Show 2009.

Armenian Armavia will receive the first two planes, followed by Aeroflot, which has ordered a total of 30 planes with an option for 15 more. Other buyers of the plane include Russia's Avialeasing company, Swiss Ama Asset Management Advisor and Indonesian Kartika Airlines.

As of June 2009, Thirteen planes are currently under construction, and the first four will be handed over to clients by the end of the year. After 2012, the company will build 70 Superjets per year.

Operational history

The Superjet 100 is undergoing certification process, so no commercial orders have been fulfilled yet.

Orders and options

Timeline

  • August 2005 at MAKS-2005 - Finance Leasing Company and Sukhoi Civil Aircraft sign a sales contract for 10 aircraft of the new RRJ family for $262 million.
  • December 2005 - Aeroflot signs the contract for the delivery of 30 Sukhoi Superjet 100s, thus becoming the program's launch customer. The total deal is valued at approximately $820 million.
  • December 2006 - Sukhoi Civil Aircraft wins a $170 million order from Dalavia Far East Airways.
  • May 2007 - Aeroflot and Sukhoi Civil Aircraft Company announces the signature of the Letter of Intent to purchase 15 aircraft of Sukhoi Superjet 100 family. Earlier, Aeroflot had already signed the contract for delivery of 30 SSJ-100s. According to the letter, the airline will purchase fifteen SSJ100/95s in basic configuration with deliveries to start in May 2011. The airline also holds an option for another 5 aircraft of the family. The deal amounts at over $400 million.
  • September 2007 - Armavia signs a multimillion-dollar agreement to buy four SSJ-100 planes for regional flights.
  • July 2008 - Avia Leasing acquires 24 Sukhoi Superjet 100 aircraft in basic configuration with an option for 16 additional aircraft on the second day of the 2008 Farnborough Airshow. The order has a total value of over $630 million. Order firmed at Paris Airshow 16 June 2009
  • July 2008 - SuperJet International and AMA Asset Management Advisors (Suisse) sign an agreement for the acquisition of 5 new Sukhoi Superjet 100 aircraft for a total value of approximately $150 million..
  • July 2008 - SuperJet International announces an order by an undisclosed renowned European customer for a fleet of 20 new Sukhoi Superjet 100 aircraft valued at approximately $600 million. The order appears to be placed by SuperJet International and not with Icelandair as reported earlier.
  • December 5, 2008, Jakarta – Sukhoi Civil Aircraft Company and Kartika Airlines sign the Heads of Agreement for 15 Sukhoi Superjet 100s and another 15 optional aircraft. The order is valued at $448 million. Kartika Airlines is the first SSJ100 customer in Southeast Asia.
  • June 17, 2009, Paris Airshow - Gazprom orders 10 Superjet 100 aircraft.

Specifications

See also

Comparable aircraft

Related lists

External links
