The Wainfan FMX-4 Facetmobile is an American homebuilt aircraft designed by Barnaby Wainfan, a Northrop Grumman aerodynamicist and homebuilt aircraft engineer.
While only one Facetmobile prototype was produced, it has become well known due to its unique nature. The aircraft is unusual in that it is a lifting body –
the whole aircraft acts as a low aspect ratio wing: a flat, angular lifting shape, unlike traditional aircraft which use distinct lift-generating wings attached to a non-lifting fuselage. Also notably the aircraft's shape is formed of a series of 11 flat surfaces, somewhat similar to the body
of the F-117 Nighthawk jet strike aircraft in using flat plates, but without separate wing structures.
FMX-4 Facetmobile

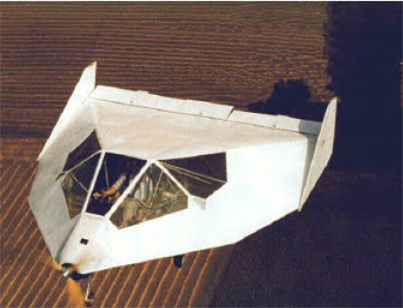

The FMX-4 Facetmobile in flight.
Role: Homebuilt Aircraft
National origin: United States
Designer: Barnaby Wainfan
First flight: April 22, 1993
Number built: 1
Design and development
Shape
The FMX-4 Facetmobile shape forms 11 flat planes, plus two wingtip rudders. Three flat shapes form the bottom of the aircraft (slightly inclined front, flat middle, and sharply raised back), and eight form the top (one large downwards-sloping rear section, one thin nose section, and three inclined side panels per side). The wing section is an 18% thickness ratio, much thicker than the typical 12-15% thickness of normal light aircraft wings. At least one commercial model airplane kit of the Facetmobile is in production.
The prototype FMX-4 Facetmobile crashed on October 13, 1995, after an in-flight engine failure. The aircraft landed at low speed into a barbed wire fence, which caused extensive skin, engine, and some structural damage, though there was no injury to the pilot, Barnaby Wainfan. As of 2006, the aircraft has been partially repaired but not flown again.
Structure
The Facetmobile structure is composed of 6061 aluminum tubing fastened with Cherrymax rivets. The fuselage uses conventional fabric covering. The aircraft uses elevons and rudders for control. The landing gear is a fixed tricycle type. The large windshield sections are augmented by two floor-mounted windows. The aircraft is boarded through a bottom-mounted hatch. The aircraft has a BRS parachute system installed.
Variants
Wainfan has proposed two derivative aircraft based on the FMX-4 Facetmobile.
- FMX-5 Facetmobile, a larger 2-seat design using the same aluminum-tube-and-fabric construction.
- An unnamed similar 2-seat design using advanced flat composite panel construction.
Specifications (Facetmobile FMX-4)
General characteristics
- Crew: 1
- Length: 19 ft 6 in (5.94 m)
- Wingspan: 15 ft (4.6 m)
- Wing area: 214 sq ft (19.9 m2)
- Empty weight: 370 lb (168 kg)
- Gross weight: 740 lb (336 kg)
- Fuel capacity: 10-13 gallons
- Powerplant: 1 × Rotax 503 DC , 50 hp (37 kW)
- Propellers: 3-bladed GSC ground adjustable
Performance
- Maximum speed: 96 kn (110 mph, 178 km/h)
- Cruise speed: 80 kn (92 mph, 150 km/h)
- Rate of climb: 750 ft/min (3.8 m/s)
- Wing loading: 3.45 lb/sq ft (16.8 kg/m2)
