Flight recorder

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Flight_recorder

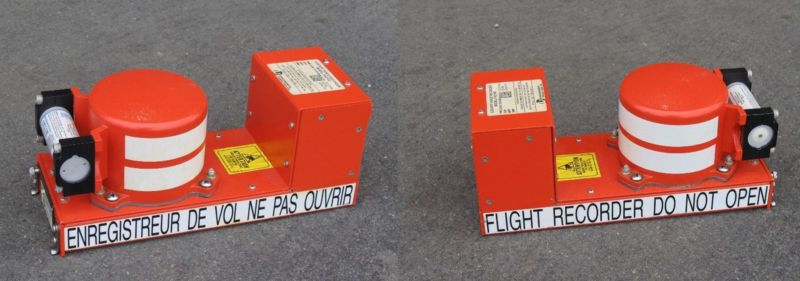

Both side views of a cockpit voice recorder, one type of flight recorder
Both side views of a cockpit voice recorder, one type of flight recorder

A flight recorder is a recorder placed in an aircraft for the purpose of facilitating the investigation of an aircraft accident or incident. For this reason, recorders are required to be capable of surviving the conditions likely to be encountered in a severe aircraft accident. They are typically specified to withstand an impact of 3600 g and temperatures of over 1,000 °C (as required by EUROCAE ED-112). There are two common types of flight recorder, the flight data recorder (FDR) and the cockpit voice recorder (CVR). In some cases, the two recorders may be combined in a single FDR/CVR unit.

Since the 1970s most large civil jet transports have been additionally equipped with a "Quick access recorder" (QAR). This records data on a removable storage medium. Access to the FDR and CVR is necessarily difficult because of the requirement that they survive an accident. They also require specialist equipment to read the recording. The QAR recording medium is readily removable and is designed to be read by equipment attached to a standard desktop computer. In many airlines the quick access recordings are scanned for 'events', an event being a significant deviation from normal operational parameters. This allows operational problems to be detected and eliminated before an accident or incident results.

Many modern aircraft systems are digital or digitally controlled. Very often the digital system will include Built-In Test Equipment which records information about the operation of the system. This information may also be accessed to assist with the investigation of an accident or incident.

Specifications

EUROCAE ED-112 (Minimum Operational Performance Specification for Crash Protected Airborne Recorder Systems) defines the minimum specification to be met for all aircraft requiring flight recorders for recording of flight data, cockpit audio, images and CNS/ATM digital messages and used for investigations of accidents or incidents. [1] When issued in March 2003 ED-112 superseded previous ED-55 and ED-56A that were separate specifications for FDR and CVR. FAA TSOs for FDR and CVR reference ED-112 for characteristics common to both types.

In order to facilitate recovery of the recorder from an aircraft accident site they are required to be coloured bright yellow or orange with reflective surfaces. All are lettered "FLIGHT RECORDER DO NOT OPEN" on one side in English and the same in French ("ENREGISTREUR DE VOL NE PAS OUVRIR") on the other side. To assist recovery from submerged sites they must be equipped with an underwater locator beacon which is automatically activated in the event of an accident.

History

As with many successful devices, probably no single person could be credited with the invention of the flight recorder. However, one of the earliest and proven attempts was made by François Hussenot and Paul Beaudouin in 1939 at the Marignane flight test center, France; they were essentially photograph-based flight recorders since the record was made on a scrolling photographic film. The latent image was made by a thin ray of light deviated by a mirror tilted according to the magnitude of the data to record (altitude, speed, etc). Since the inside of the recorder was pitch black, this may be the origin of the "black box" name, often used as a synonym for a flight recorder. In 1947, Hussenot founded the Société Française des Instruments de Mesure with Beaudouin and anoter associate, so as to market his invention, which was also known as the "hussenograph"; the SFIM went on becoming a successful equipment company and a major flight recorder supplier, and is today part of the Safran group. In 1953, Australian engineer Dr. David Warren conceived a device that would record not only the instruments reading, but also the the cockpit voices, when working with the Australian Research Laboratories..

Cockpit image recorder recommendation

The U.S. National Transportation Safety Board has asked for the installation of cockpit image recorders in large transport aircraft to provide information that would supplement existing CVR and FDR data in accident investigations. They also recommended image recorders be placed into smaller aircraft that are not required to have a CVR or FDR. The rationale is that what is seen on an instrument by the pilots of an aircraft is not necessarily the same as the data sent to the display device. This is particularly true of aircraft equipped with electronic displays (CRT or LCD). A mechanical instrument is likely to preserve its last indication but this is not the case with an electronic display.

Such systems, estimated to cost less than $8,000 installed, typically consist of a camera and microphone located in the cockpit to continuously record cockpit instrumentation, the outside viewing area, engine sounds, radio communications, and ambient cockpit sounds. As with conventional CVRs and FDRs, data from such a system is stored in a crash-protected unit to ensure survivability.

See also

  1. ^ Jean-Claude Fayer, Vols d’essais: Le Centre d’Essais en Vol de 1945 à 1960, published by E.T.A.I. (Paris), 2001, 384 pages, ISBN 2-7268-8534-9
  2. ^ See page 207 of Denis Beaudouin, Chloé Beaudouin, Charles Beaudouin: une histoire d'instruments scientifiques, published by EDP Sciences Editions, 2005, 285 pages, ISBN 2868838073, available on Google Books
  3. ^ Beaudouin & Beaudouin, p. 210 (op. cit.)
  4. ^ Australian Research Laboratories
  5. ^ NTSB - Most Wanted
