Contrails (short for "condensation trails") or vapour trails are visible trails of condensed water vapour made by the exhaust of aircraft engines. As the hot exhaust gases cool in the surrounding air they may precipitate a cloud of microscopic water droplets. If the air is cold enough, this trail will comprise tiny ice crystals.
The wingtip vortices which trail from the wingtips and wing flaps of aircraft are sometimes partly visible due to condensation in the cores of the vortices. Each vortex is a mass of spinning air and the air pressure at the centre of the vortex is very low. These wingtip vortices are not the same as contrails.
Depending on atmospheric conditions, contrails may be visible for only a few seconds or minutes, or may persist for many hours.Contrails from a Qantas jet, Australia
Condensation from engine exhaust
The main products of hydrocarbon fuel combustion are carbon dioxide and water vapor. At high altitudes this water vapour emerges into a cold environment, and the local increase in water vapour can push the water content of the air past saturation point. The vapour then condenses into tiny water droplets and/or deposits into ice. These millions of tiny water droplets and/or ice crystals form the vapour trail or contrails. The energy drop (and therefore, time and distance) the vapour needs to condense accounts for the contrail forming some way behind the aircraft's engines. The majority of the cloud content comes from water trapped in the surrounding air. At high altitudes, supercooled water vapour requires a trigger to encourage deposition or condensation. The exhaust particles in the aircraft's exhaust act as this trigger, causing the trapped vapour to rapidly turn to ice crystals. Exhaust vapour trails or contrails usually occur above 8000 metres (26,000 feet). where the temperature is below -40°C (-40°F).
Condensation from decreases in pressure
When a wing is generating lift it causes a vortex to form at each wingtip, and sometimes also at the tip of each wing flap. These wingtip vortices persist in the atmosphere long after the aircraft has passed. The reduction in pressure and temperature across each vortex can cause water to condense and make the cores of the wingtip vortices visible. This effect is more common on humid days. Wingtip vortices can sometimes be seen behind the wing flaps of airliners during takeoff and landing, and during landing of the Space shuttle.
The visible cores of wingtip vortices contrast with the other major type of contrails which are caused by the combustion of fuel. Contrails produced from jet engine exhaust are seen at high altitude, directly behind each engine. In contrast, the visible cores of wingtip vortices are usually seen only at low altitude where the aircraft is travelling slowly after takeoff or before landing, and where the ambient humidity is higher. They trail behind the wingtips and wing flaps rather than behind the engines.
During high-thrust settings the fan blades at the intake of a turbo-fan engine reach transonic speeds, causing a sudden drop in air pressure. This creates the condensation fog (inside the intake) which is often observed by air travelers during takeoff. For more information see the Prandtl–Glauert singularity effect.
Vapour trails or contrails and climate

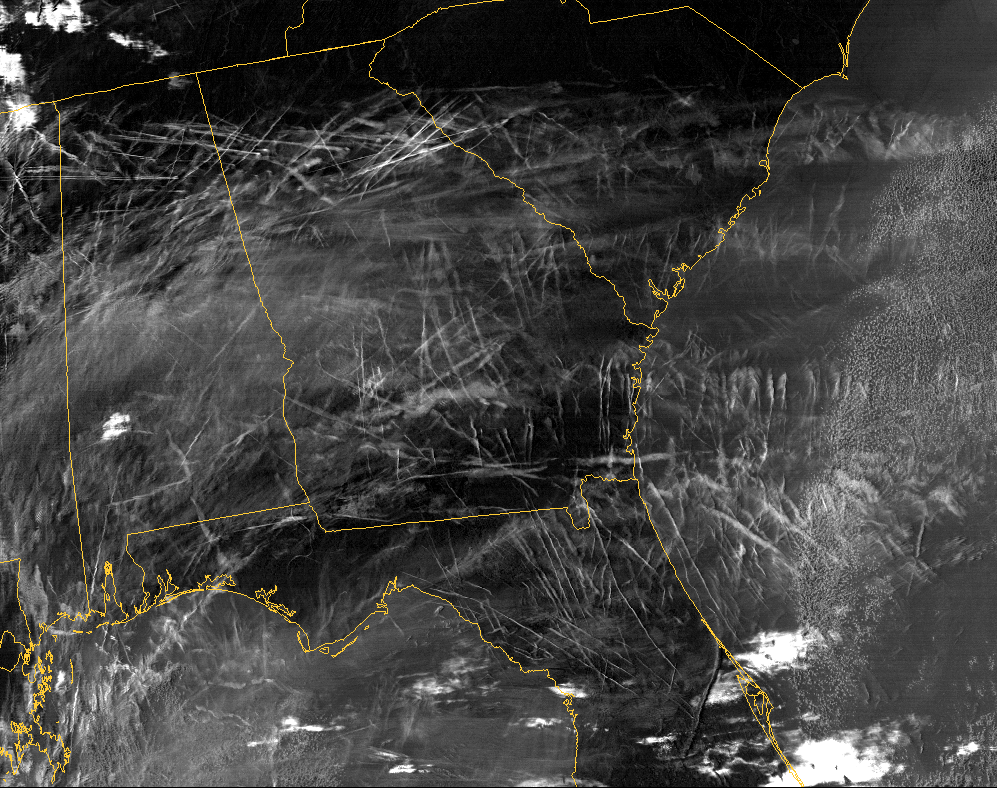

Vapour trails or contrails, by affecting the Earth's radiation balance, act as a radiative forcing. Studies have found that vapour trails or contrails trap outgoing longwave radiation emitted by the Earth and atmosphere (positive radiative forcing) at a greater rate than they reflect incoming solar radiation (negative radiative forcing). Therefore, the overall net effect of contrails is positive, i.e. a warming. However, the effect varies daily and annually, and overall the magnitude of the forcing is not well known: globally (for 1992 air traffic conditions), values range from 3.5 mW/m² to 17 mW/m². Other studies have determined that night flights are mostly responsible for the warming effect: while accounting for only 25% of daily air traffic, they contribute 60 to 80% of contrail radiative forcing. Similarly, winter flights account for only 22% of annual air traffic, but contribute half of the annual mean radiative forcing.
September 11, 2001 climate impact study
The grounding of planes for three days in the United States after September 11, 2001 provided a rare opportunity for scientists to study the effects of contrails on climate forcing. Measurements showed that without contrails, the local diurnal temperature range (difference of day and night temperatures) was about 1 degree Celsius higher than immediately before; however, it has also been suggested that this was due to unusually clear weather during the period.
Condensation trails have been suspect of causing “regional-scale surface temperature” changes for some time. Researcher David J. Travis, an atmospheric scientist at the University of Wisconsin-Whitewater, has published and spoke on the measurable impacts of contrails on climate change in the science journal Nature and at the American Meteorological Society 10th Annual conference in Portland, Oregon. The effect of the change in aircraft contrail formation on the 3 days after the 11th was observed in surface temperature change, measured across over 4,000 reporting stations in the continental U.S.. Travis’ research documented an “anomalous increase in the average diurnal temperature change. The diurnal temperature change (DTR) is the difference in the day's highs and lows at any weather reporting station . Travis observed a 1.8 degree Celsius departure from the two adjacent three-day periods to the 11th-14th.. This increase was the largest recorded in 30 years, more than “2 standard deviations away from the mean DTR”.
A 'distrail' is short for dissipation trail. Where an aircraft passes through a cloud, it can clear a path through it; this is known as a distrail. Because the plane's contrail is not yet visible (contrails usually form above 26,000 feet, depending on the temperature and other factors) the distrail looks like a tunnel through the cloud if the cloud is very thin.
Distrails are created by the elevated temperature of the exhaust gases absorbing the moisture from the cloud. Clouds exist where the humidity is 100%, but by increasing the temperature, the air can hold more moisture, thus causing the visible water droplets in the cloud to be converted back into water vapor.
Published - July 2009
