Compressed-air energy storage

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Compressed_air_energy_storage

Compressed Air Energy Storage (CAES) refers to the compression of air to be used later as energy source. At utility scale, it can be stored during periods of low energy demand (off-peak), for use in meeting periods of higher demand (peak load).Alternatively it can be used to power tools, or even vehicles. (see also: Pressure vessel)


Conceptual representation of the compressed-air energy storage concept. Off-peak (low-cost) electrical power is used to compress air into an underground air-storage “vessel” (the Norton mine), and later the air is used to feed a gas-fired turbine generator complex to generate electricity during on-peak (high-price) times. A similar concept[1] uses wind powered air compressors.
Conceptual representation of the compressed-air energy storage concept. Off-peak (low-cost) electrical power is used to compress air into an underground air-storage “vessel” (the Norton mine), and later the air is used to feed a gas-fired turbine generator complex to generate electricity during on-peak (high-price) times. A similar concept[1] uses wind powered air compressors.

Types

Compressed air energy storage can be done adiabatically, diabatically, or isothermally:

  • With adiabatic storage, the heat that appears during compression is also stored, then returned to the air when the air is expanded. This is a subject of ongoing study, but no utility scale plants of this type have been built. The theoretical efficiency of adiabatic energy storage approaches 100% for large and/or rapidly cycled devices and/or perfect thermal insulation, but in practice round trip efficiency is expected to be 70%. Heat can be stored in a solid such as concrete or stone, or more likely in a fluid such as hot oil (up to 300C) or a molten-salt (600C).
  • With diabatic storage, the extra heat is removed from the air with inter coolers following compression (thus approaching isothermal compression), and is dissipated into the atmosphere as waste. Upon removal from storage, the air must be re-heated (usually in a natural gas fired burner for utility grade storage or with a heated metal mass for large Uninterruptible Power Supplies) prior to expansion in the turbine to power a generator. The heat discarded in the intercoolers degrades efficiency, but the system is simpler than the adiabatic one, and thus far is the only system which has been implemented commercially. The McIntosh CAES plant requires 0.69kWh of electricity and 1.17kWh of gas for each 1.0kWh of electrical output (a non-CAES natural gas plant can be up to 60% efficient therefore uses 1.67kWh of gas per kWh generated).
  • Isothermal compression and expansion approaches (which attempt to maintain operating temperature by constant heat exchange to the environment) are only practical for rather low power levels, unless very effective heat exchangers can be incorporated. The theoretical efficiency of isothermal energy storage approaches 100% for small and/or slowly cycled devices and/or perfect heat transfer to the environment.

In practice neither of these perfect thermodynamic cycles are obtainable, as some heat losses are unavoidable.

A highly efficient arrangement, which fits neatly into none of the above categories, uses high, medium and low pressure pistons in series, with each stage followed by an airblast venturi that draws ambient air (or seawater as in early compressed air torpedo designs) over an air-to-air (or air-to-seawater) heat exchanger between each expansion stage. This warms the exhaust of the preceding stage and admits this preheated air to the following stage. This was widely practiced in various compressed air vehicles such as H. K. Porter, Inc's mining locomotivesand trams.. Here the heat of compression is effectively stored in the atmosphere (or sea) and returned later on.

Compression can be done with electrically powered turbo-compressors, expansion with turbo 'expanders'or air engines driving electrical generators to produce electricity.

Air is stored in mass quantity in underground in a cavern created by solution mining (salt is dissolved away) or an abandoned mine. Plants are designed to operate on a daily cycle, charging at night and discharging during the day.

Compressed air energy storage can also be used to describe technology on a smaller scale such as exploited by air cars or wind farms in steel or carbon-fiber tanks.

History

City-wide compressed air energy systems have been around since the early 19th century (1870). In the early days, cities as Paris, Birmingham, Rixdorf, Offenbach, Dresden and Buenos Aires were equipped with these systems. The first systems were constructed by Victor Popp for powering clocks (by sending a pulse of air every minute to change the pointer), yet quickly evolved as a means to deliver power to industry and to homes.As of 1896, the Paris system had 3000 hp of generation distributed at 80psi in 30 miles of air pipes whose use for motors in light as well as heavy industry. Usage was measured with meters. The systems were the main source of (house-delivered) energy in these days and were also used to power the machines of dentists, seamstresses, printing facilities and bakeries.

Physics of isothermal compressed air storage

One type of reversible air compression and expansion is described by the isothermal process, where the temperature remains constant. Compressing air heats it up and the heat must therefore be able to flow to the environment during compression for the temperature to remain constant. In practice this is often not the case, because to properly intercool a compressor requires a compact internal heat exchanger that is optimized for high heat transfer and low pressure drop. Without an internal heat exchanger, isothermal compression can be approached at low flow rates, particularly for small systems. Small compressors have higher inherent heat exchange, due to a higher ratio of surface area to volume. Nevertheless it is useful to describe the limiting case of ideal isothermal compression of an ideal gas:

The ideal gas law, for an isothermal process is:

PV = nRT = constant

By the definition of work, where A and B are the initial and final states of the system:

W_{A\to B}=\int_{V_A}^{V_B} P\,dV =\int_{V_A}^{V_B} \frac{nRT}{V}\,dV = nRT\int_{V_A}^{V_B} \frac{1}{V}\,dV  = nRT(\ln{V_B}-\ln{V_A}) = nRT\ln{\frac{V_B}{V_A}} = nRT\ln{\frac{P_A}{P_B}} = PV\ln{\frac{P_A}{P_B}}

where, PAVA = PBVB , and so, \frac{V_B}{V_A} = \frac{P_A}{P_B}

\ P is the absolute pressure,
\ V is the volume of the vessel,
\ n is the amount of substance of gas,
\ R is the ideal gas constant,
\ T is the absolute temperature,
\ W is the energy stored or released.

This amounts to about 2.271 \ln{\frac{P_A}{P_B}} kJ at 0 degrees Celsius (273.15 kelvin) or 2.478 \ln{\frac{P_A}{P_B}} kJ at 25 °C (298 K), per mole, or simply 100 \ln{\frac{P_A}{P_B}} kJ per m³ of gas (at 0.1 MPa = aprox. atmospheric pressure).

An isothermal process is thermodynamically reversible, so to the extent the processes are isothermal, the efficiency of compressed air storage will approach 100%. The equation above represents the maximum energy that can be stored. In practice, the process will not be perfectly isothermal and the compressors and motors will have heat-related energy losses.

When gas is compressed adiabatically, some of the compression work goes into heating the gas. If this heat is then lost to the surroundings, and assuming the same quantity of heat is not added back to the gas upon expansion, the energy storage efficiency will be reduced. Energy storage systems often use large natural underground caverns. This is the preferred system design, due to the very large gas volume, and thus the large quantity of energy that can be stored with only a small change in pressure. The cavern space can be compressed adiabatically and the resulting temperature change and heat losses are small.

Practical constraints in transportation

Energy density and efficiency

Compressing air heats it up and expanding it cools it down. Therefore practical air engines require heat exchangers in order to avoid excessively high or low temperatures and even so don't reach ideal constant temperature conditions. Nevertheless it is useful to describe the maximum energy storable using the isothermal case, which works out to about 100 ln{\frac{P_A}{P_B}} kJ/m. Thus if 1.0 m of ambient air is very slowly compressed into a 5-liter bottle at 200 bar, the potential energy stored is 530 kJ (or 0.15 kWh). A highly efficient air motor could transfer this into kinetic energy if it runs very slowly and manages to expand the air from its initial 200 bar pressure completely down to 1 bar (bottle completely "empty" at ambient pressure). Achieving high efficiency is a technical challenge both due to nonlinear energy storage and the thermodynamic considerations. If the bottle above is emptied down to 10 bar, the energy extractable is about 300 kJ at the motor shaft. The efficiency of isothermal compressed gas storage is theoretically 100% but in practice the process is not isothermal and the two engines (compressor and motor) have additional types of losses.

A standard 200 bar 5 liter steel bottle has a mass of 7.5 kg, a superior one, 5 kg. Bottles reinforced with, or built from, high-tensile fibers such as carbon-fiber or kevlar can be below 2 kg in this size, consistent with the legal safety codes. 1 m3 of air contained inside such a full bottle has a mass of 1.225 kg (at 20°C). Thus, theoretical energy densities are from roughly 70 kJ/kg at the motor shaft for a plain steel bottle to 180 kJ/kg at the motor shaft for an advanced fiber-wound one, whereas practical achievable energy densities for the same containers would be from 40 kJ/kg to 100 kJ/kg. Comparing to the data given for rechargeable batteries, this makes the advanced fiber-reinforced bottle example comparable to the lead-acid battery in terms of energy density and advanced battery systems are several times better. Batteries also provide nearly constant voltage over their entire charge level, whereas the pressure of compressed air storage varies greatly with charge level. It is technically challenging to design air engines to maintain high efficiency and sufficient power over such a wide range of pressures. Compressed air can transfer power at very high rates, which is a principal objective of transportation prime-movers, for acceleration and deceleration; particularly for hybrid vehicles.

Advantages of compressed air over electric storage are the longer lifetime of pressure vessels compared to batteries and the lower toxicity of the materials used. Costs are thus potentially lower, however advanced pressure vessels are costly to develop and safety-test and at present are more expensive than mass-produced batteries.

As with electric technology, it must be stressed that compressed air energy storage depends on external energy sources and overall consumption can only be as "clean" as these.

Safety

As with most technologies, compressed air has safety concerns, mainly the catastrophic rupture of the tank. Highly conservative safety codes make this a rare occurrence at the tradeoff of higher weight. Codes may limit the legal working pressure to less than 40% of the rupture pressure for steel bottles (safety factor of 2.5), and less than 20% for fiber-wound bottles (safety factor of 5). Design rules are according to the ISO 11439 standard.High pressure bottles are fairly strong so that they generally do not rupture in crashes.

Compressed air vehicles

History

The idea of using air as an energy carrier is not new. Air engines have been used since the 19th century to power mine locomotives, pumps, drills and trams in cities such as Paris, Birmingham, Rixdorf, ... in the 19th century, via a central, city-level, compressed air energy distribution. Also, at one time compressed air was the basis of naval torpedo propulsion.

<-img src="http://upload.wikimedia.org/wikipedia/en/thumb/c/cd/Compressed_Air_Loco.jpg/180px-Compressed_Air_Loco.jpg"/>

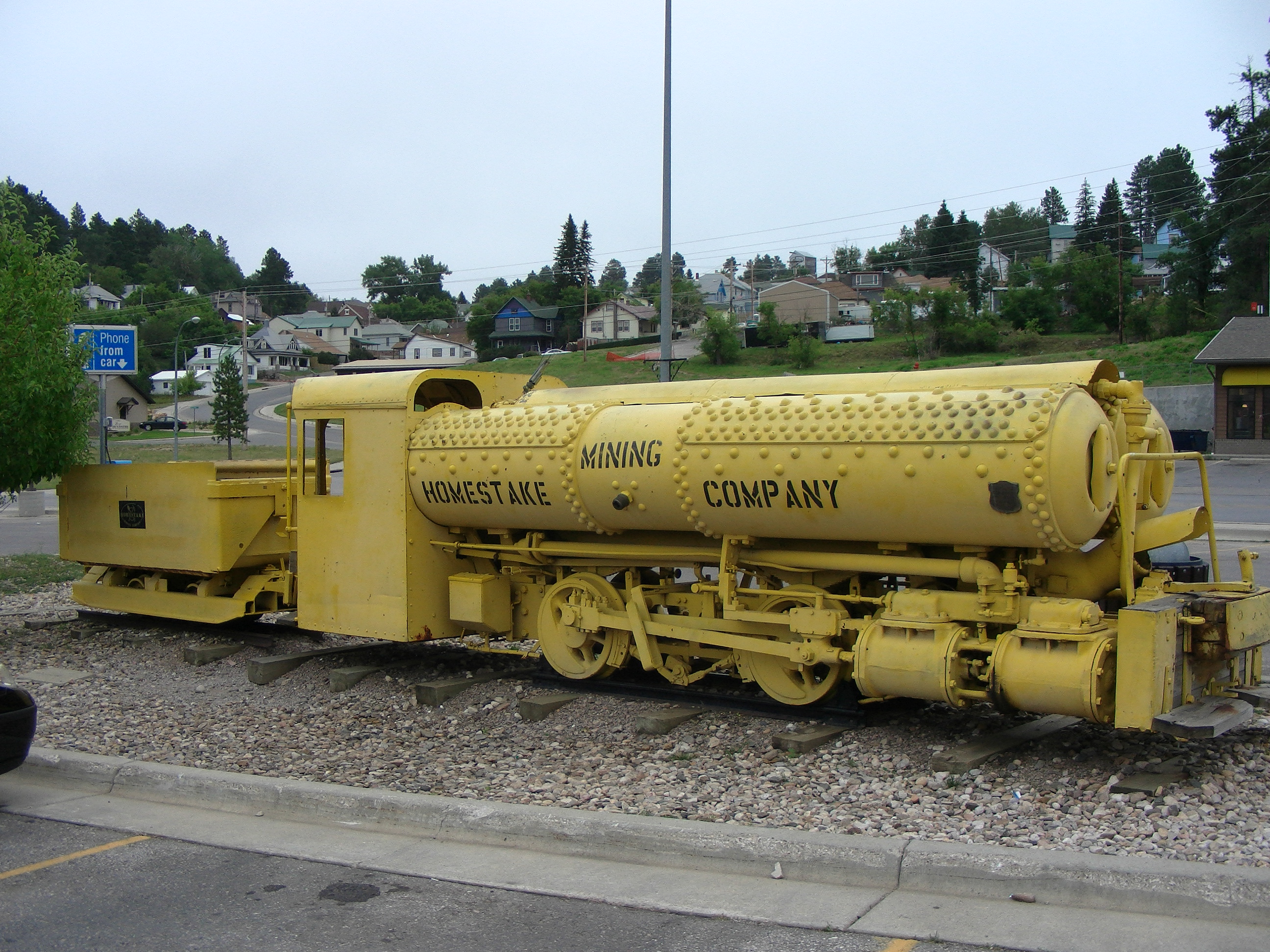

A compressed air locomotive by H. K. Porter, Inc., in use at the Homestake Mine between 1928 and 1961.

Compressed air is still currently used in racecars to provide the initial energy needed to start the car's main power plant, the internal combustion engine (ICE).

Many people have been working on the idea of compressed air vehicles with renewed interest since the 1990s energy crisis.

Engine

A compressed air engine uses the expansion of compressed air to drive the pistons of an engine, an axle, or to drive a turbine.

Sometimes efficiency is increased by the following methods:

  • A turbine with continuous expansion at high efficiency
  • several stages of expansion
  • use of waste heat, notably in a hybrid heat engine design
  • use of environmental heat

A highly efficient arrangement uses high, medium and low pressure pistons in series, with each stage followed by an airblast venturi that draws ambient air over an air-to-air heat exchanger between each expansion stage. This warms the exhaust of the preceding stage and admits this preheated air to the following stage..

The only exhaust gas from each stage is cold air which can be as cold as (−15 °C), this may also be used for air conditioning in a car.

Additional heat can be supplied by burning fuel as in 1904 for Whitehead's torpedoes. This improves the range and speed available for a given tank volume at the cost of the additional fuel.

As an alternative to pistons or turbines, the Quasiturbine is also capable of running on compressed air, and is thus also a compressed air engine.

Cars

Several companies claim to have been developing compressed air cars for public use, since about 1990, but none are available yet. Typically the main advantages are claimed to be: no roadside emissions, low cost technology, engine uses food oil for lubrication, and integrated air conditioning.

The tanks may be refilled at a service station (using volume transfer), or in a few hours at home or in parking lots plugging the car into the electric grid via an on-board compressor. The cost of driving such car is typically projected to be around €0.75 per 100 km, with a complete refill at the "tank-station" at about US$3.

Other uses

Besides the use of compressed air engines for propulsion, compressed air is used for power generation and in paintball. Many dentists and shop tools use small turbine expanders for power, and many larger tools used in high electrical shock risk environments are pneumatic driven instead of electrically powered.

Certain segments of the Amish population also use compressed air to power household appliances. In many cases they will take a standard electric household appliance (such as a KitchenAid Mixer), remove the electric motor and install a compressed air turbine instead.

Types of systems

Hybrid systems

The system can be a hybrid power generation system, with the stored compressed air mixed with a fuel suitable for an internal combustion engine. For example, natural gas or biogas can be added, then combusted to heat the compressed air, and then expanded in a conventional gas turbine engine (or the rear portion of a jet engine), using the Brayton cycle.

In addition, Compressed air engines can be used in conjunction with an electric battery. The compressed air engine, drawing its energy from compressed air tanks, recharge the electric battery. This system (called a Pne-PHEV or Pneumatic Plug-in Hybrid Electric Vehicle-system) and was being promoted by the apparently defunct Energine.

Existing hybrid systems

A hybrid plant was commissioned in Huntorf (Germany) in 1978, and again in McIntosh, Alabama in 1991 (USA).Both systems use off-peak energy for the air compression.

The operating duration of the McIntosh plant is 24 hours, with the extended operation being achieved through the combined burning of a natural gas/compressed air mix.

Future hybrid systems

A proposed hybrid power plant is under consideration in Iowa. The design calls for a 75 - 150 MW wind farm, where the wind power will be used for air compression. Power output of the McIntosh and Iowa gas/compressed air generation systems is in the range of 2-300 MW.

Additional facilities are under development in Norton, Ohio and Iowa Stored Energy Park (ISEP). This 2700 MW Norton project has been started in 2001, but in early 2007 construction had not actually begun.

Increased efficiency is expected at ISEP, due to the use of aquifer storage rather than cavern storage. The displacement of water in the aquifer results in regulation of the air pressure by the constant hydrostatic pressure of the water. A spokesperson for ISEP claims "you can optimize your equipment for better efficiency if you have a constant pressure."It is planned to have 75 - 150 MW of capacity.

Lake or ocean storage

The need for pressurized vessels or for mining (into salt caverns or aquifers) can be obviated by placing the pressurized air underwater in flexible containers (e.g. plastic bags) - at the bottom of deep lakes or off sea coasts with steep drop-offs. Challenges include the limited number of suitable locations and the need for very-high-pressure pipelines between shore and depth. However, since the containers would be very inexpensive, the need for great pressure (at great depth) may not be as important. A key benefit of systems built on this concept is that charge and discharge pressures are always constant (as determined by depth): Thus all Carnot inefficiencies can be reduced in the controlled environment of the power plant. Carnot efficiency can be increased by using multiple stages for charge and discharge and by taking advantage of inexpensive heat sinks and heat sources, such as cold water from rivers or hot water from solar ponds. Ideally, the system must be very adaptive in this regard - for example, by cooling air before pumping on summer days; also, it must be engineered to avoid inefficiency, such as wasteful pressure changes caused by inadequate piping diameter.

Sea bed anchored energy bags are being researched as solutions to the problem of storing energy generated by renewable sources at The University of Nottingham.

Academics have received €1.4m (£1.1m) in funding from E.ON, one of Europe's leading power and gas companies, to develop a new generation of and undersea storage bags that will collect energy in the form of compressed air.

Energy storage in submerged, open bottomed, anchored caissons

This is energy storage by the displacement of water by compressed air. To recover the energy compressed air is an intermediate energy carrier. The efficiency and cost of compressing the air and to recover the energy stored in the compressed air must be considered. One possibility is to sink the type of caisson used in the Normandy Mulberry Harbours of which - about 115 of these huge structures were built in about 9 months during WW 2 http://www.everything2.org/index.pl?node_id=1306625

In theory similar structures could be constructed and floated into much deeper water, sunk and anchored to the bottom using rock anchors. A flexible air pipe could be brought to the surface, to say a wind turbine base, housing an air compressor and an air turbine generator set. By pumping compressed air down to the caisson, water would be ejected lowering the internal water surface to the bottom of the caissons. To recover the stored energy the air valve would be opened and the energy recovered via the air turbine as the water re enters and air is forced out. Because the container is open bottomed, there is no internal or external pressure force - both inside and outside the caisson will be at near identical pressures at all times. However there will be massive buoyancy forces to be restrained. The flexible pipe would simply be a solid steel pipe which over 100 m can cope with significant bending - the PLUTO pipelines, to bring fuel to allied troops after D Day were basically a 3 inch (75 mm) diameter steel pipe unreeled from a 30 foot (10 m) diameter reel.

Since the compressed air will be at high pressure (10 bar at 100m depth) a lower cost air turbine can be used (compared to a low pressure one). The air pressure will be fairly constant as well, meaning an efficient air motor configuration can be chosen.

Note 90% of the energy will be in the displaced water only 10% in the compressed air itself.

See also

  1. ^ Use of compressed air as energy storage
  2. ^ "German AACAES project information". http://www.bine.info/pdf/publikation/projekt0507englinternetx.pdf. Retrieved on 2008-02-22.
  3. ^ Compressed air torpedo
  4. ^ Compressed-Air Propulsion
  5. ^ 3-stage propulsion with intermediate heating
  6. ^ "Distributed Energy Program: Compressed Air Energy Storage". United States Department of Energyone. http://www.eere.energy.gov/de/compressed_air.html. Retrieved on 2006-08-27.
  7. ^ http://www.answers.com/topic/solution-mining?cat=technology ; http://www.saltinstitute.org/12.html
  8. ^ Chambers's Encyclopaedia: A Dictionary of Universal Knowledge. W. & R. Chambers, LTD. 1896. p. page 252-253. http://books.google.com/books?id=4pwMAAAAYAAJ&pg=PA252. Retrieved on 2009-01-07.
  9. ^ Paris Energy System
  10. ^ Technische Mislukkingen by Lex Veldhoen & Jan van den Ende
  11. ^ Air - Density and Specific Weight, The Engineering Toolbox
  12. ^ Gas cylinders -- High pressure cylinders for the on-board storage of natural gas as a fuel for automotive vehicles
  13. ^ A History of the Torpedo The Early Days
  14. ^ Energine PHEV-system schematic
  15. ^ Pendick, Daniel (2007-11-17). "Squeeze the breeze: Want to get more electricity from the wind? The key lies beneath our feet". New Scientist 195 (2623): 4. http://environment.newscientist.com/channel/earth/mg19526231.700-rocks-could-be-novel-store-for-wind-energy.html. Retrieved on 2007-11-17.
  16. ^ "McIntosh project". CAES Development Company corporation website. CAES Development Company L.L.C.. http://www.caes.net/mcintosh.html. Retrieved on 2007-11-17.
  17. ^ Frequently Asked Questions
  18. ^ "Staff investigation report and recommendation". Electric Power Generating Facility in Norton. 2006-08-03. http://dis.puc.state.oh.us/. Retrieved on 2006-08-27.
  19. ^ "About the Iowa Stored Energy Park". ISEPA corporate web site. Iowa Stored Energy Plant Agency. http://www.isepa.com/about_isep.asp. Retrieved on 2007-11-17.
  20. ^ "Wind plus compressed air equals efficient energy storage in Iowa proposal". Energy Services Bulletin website. Western Area Power Administration. http://www.wapa.gov/es/pubs/ESB/2003/03Aug/esb084.htm. Retrieved on 2008-04-29.
  21. ^ Prior art. Oliver Laing et al. Energy storage for off peak electricity. United States Patent No. 4873828.
  22. ^ PA131/08 — June 16 2008
